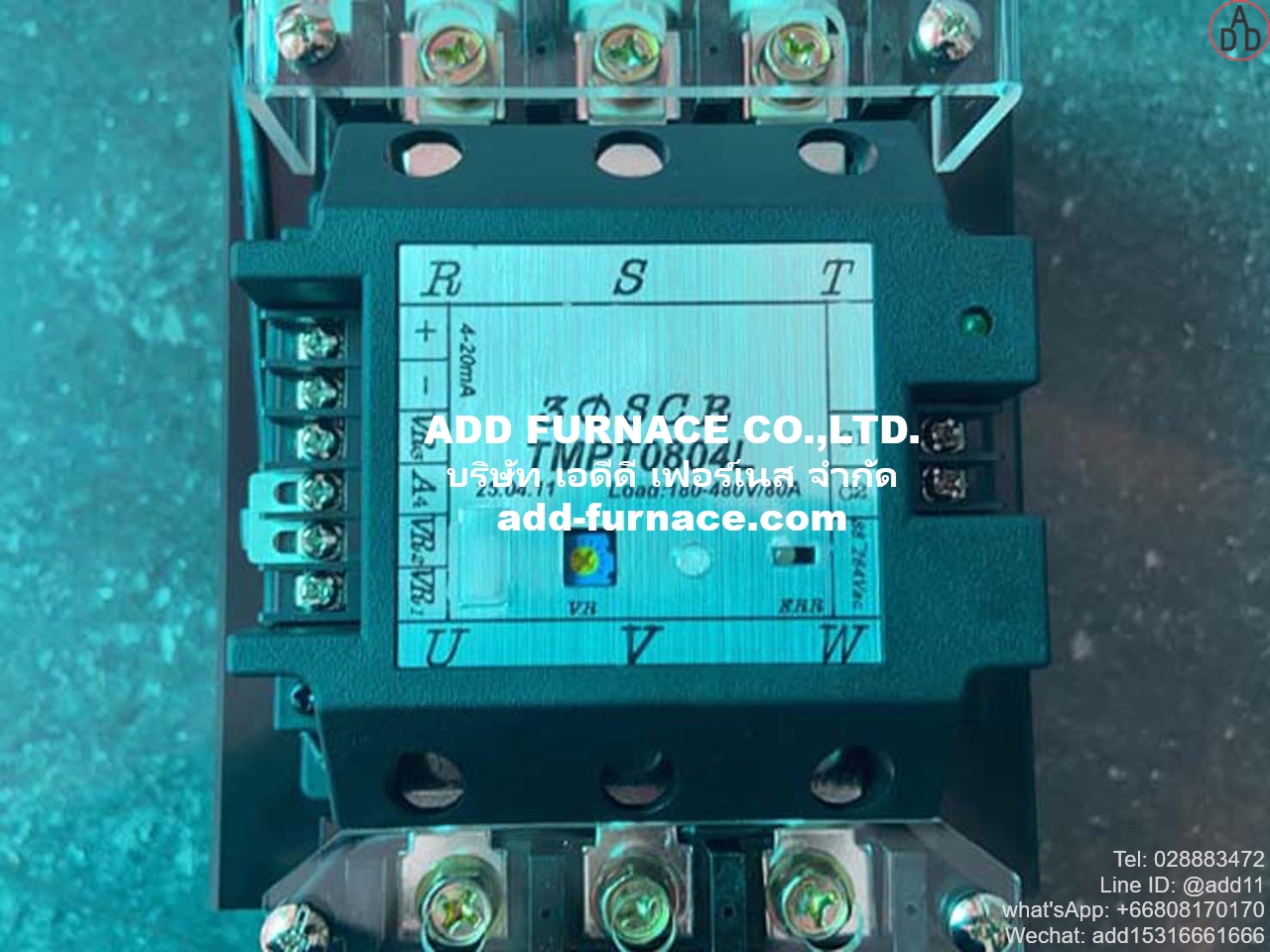

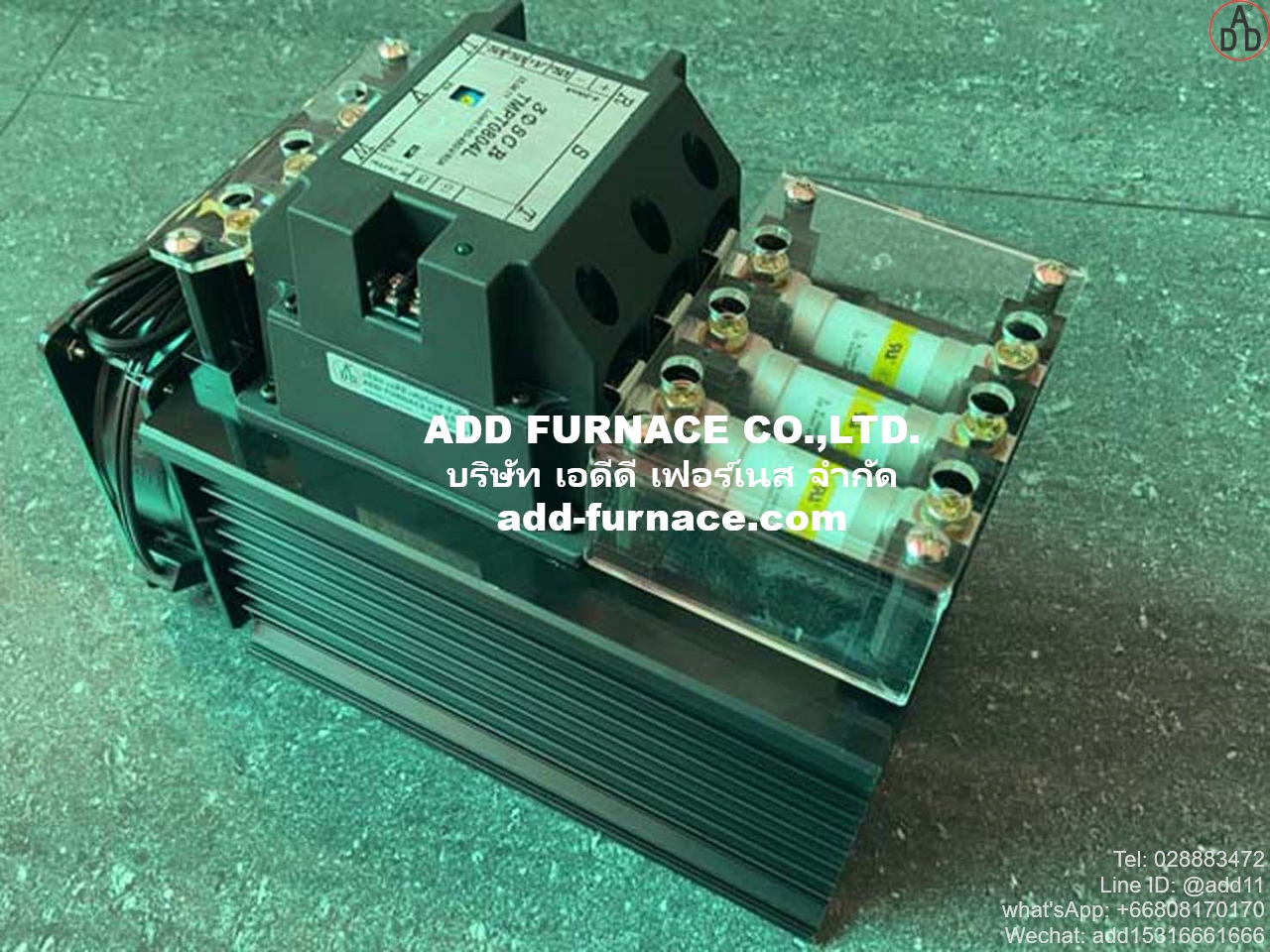

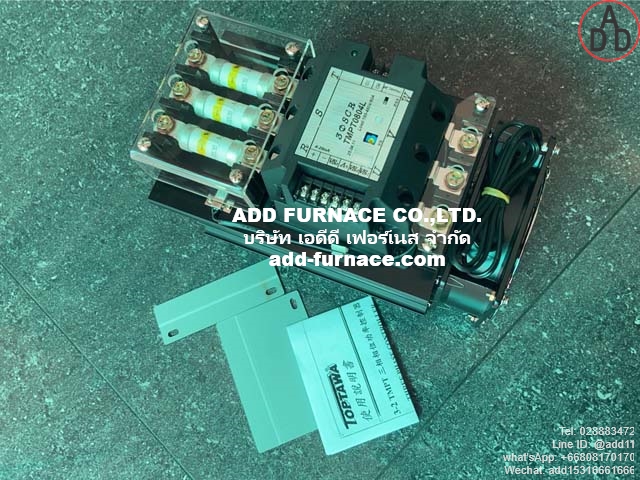

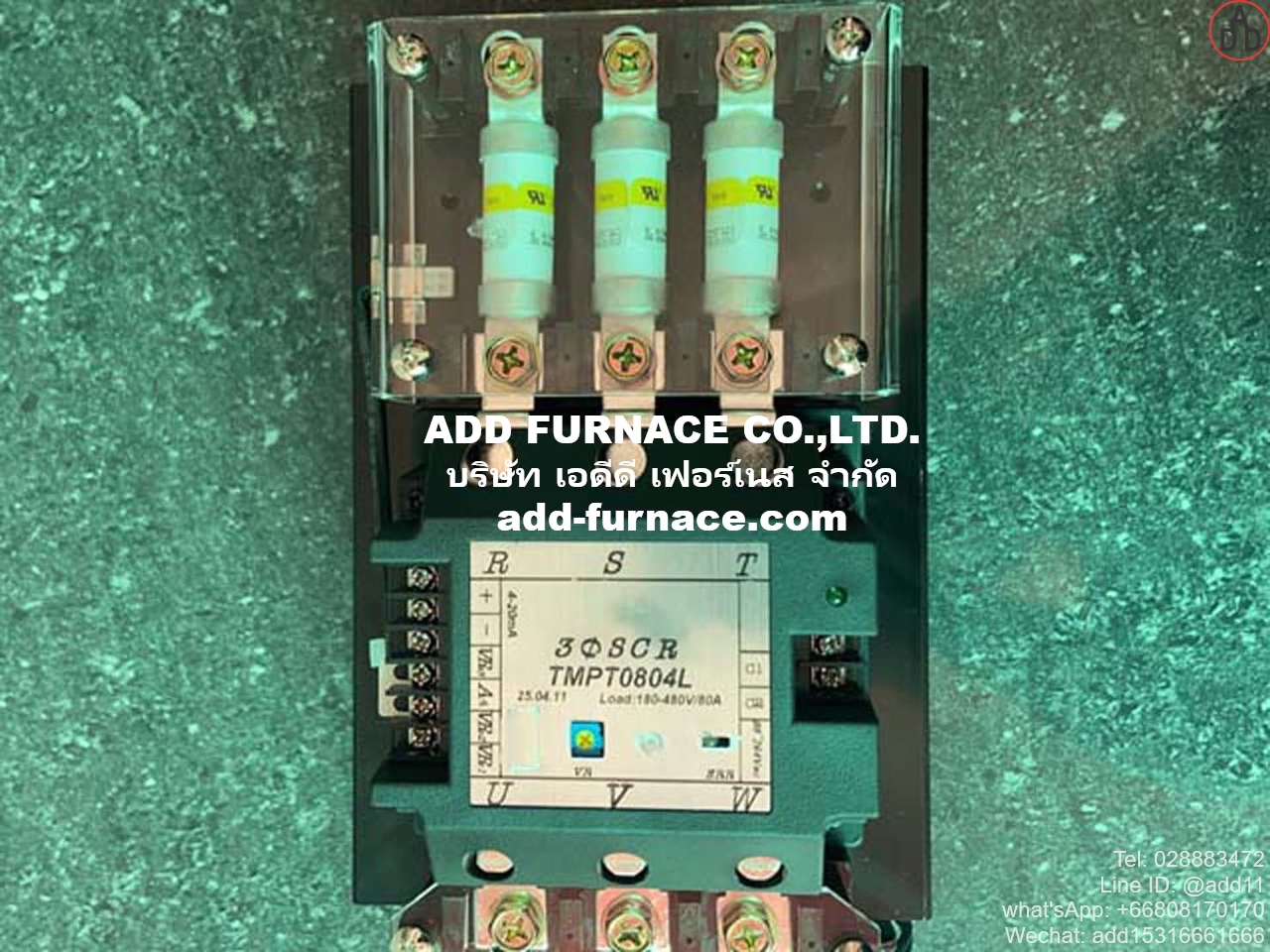

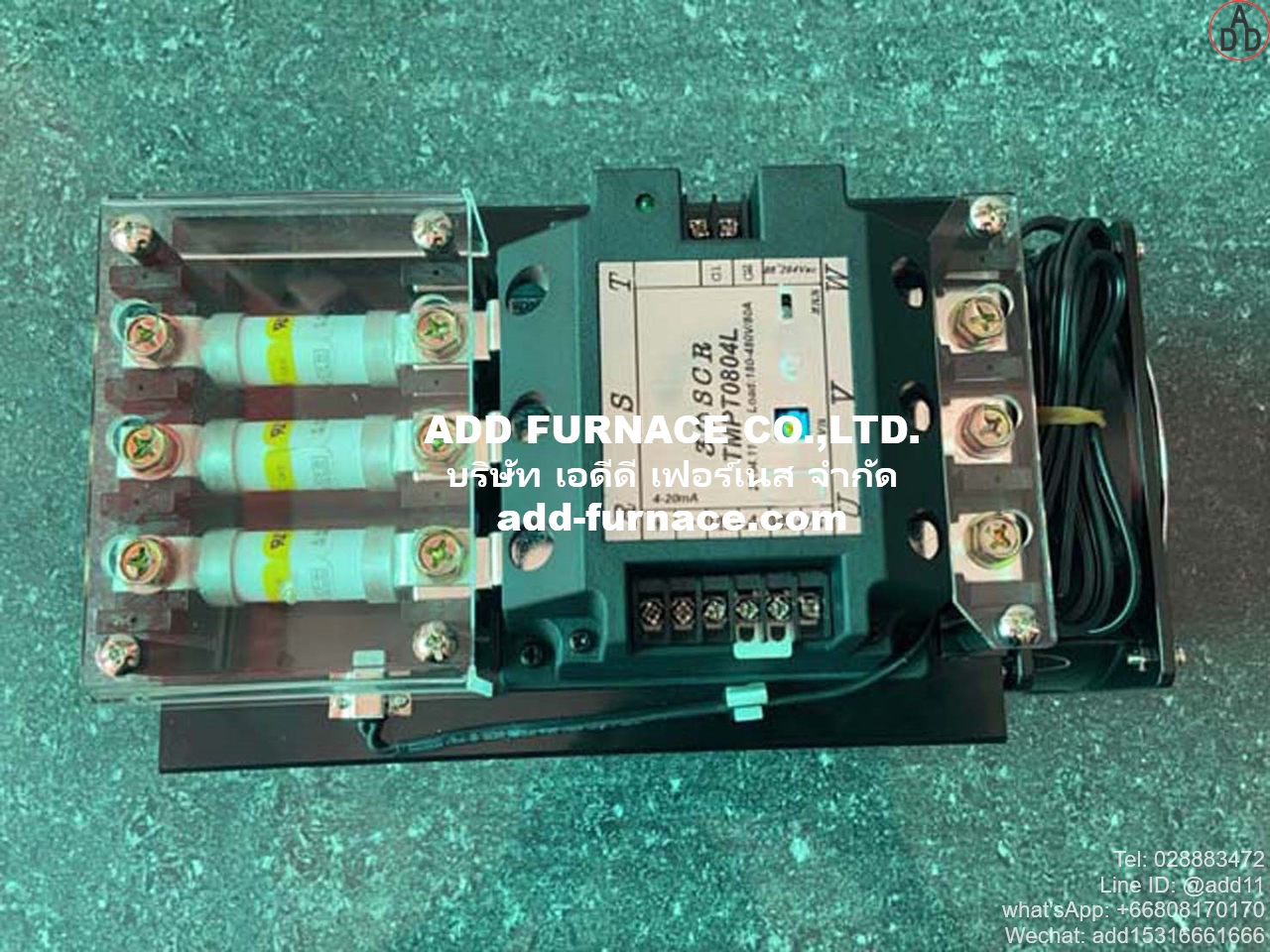

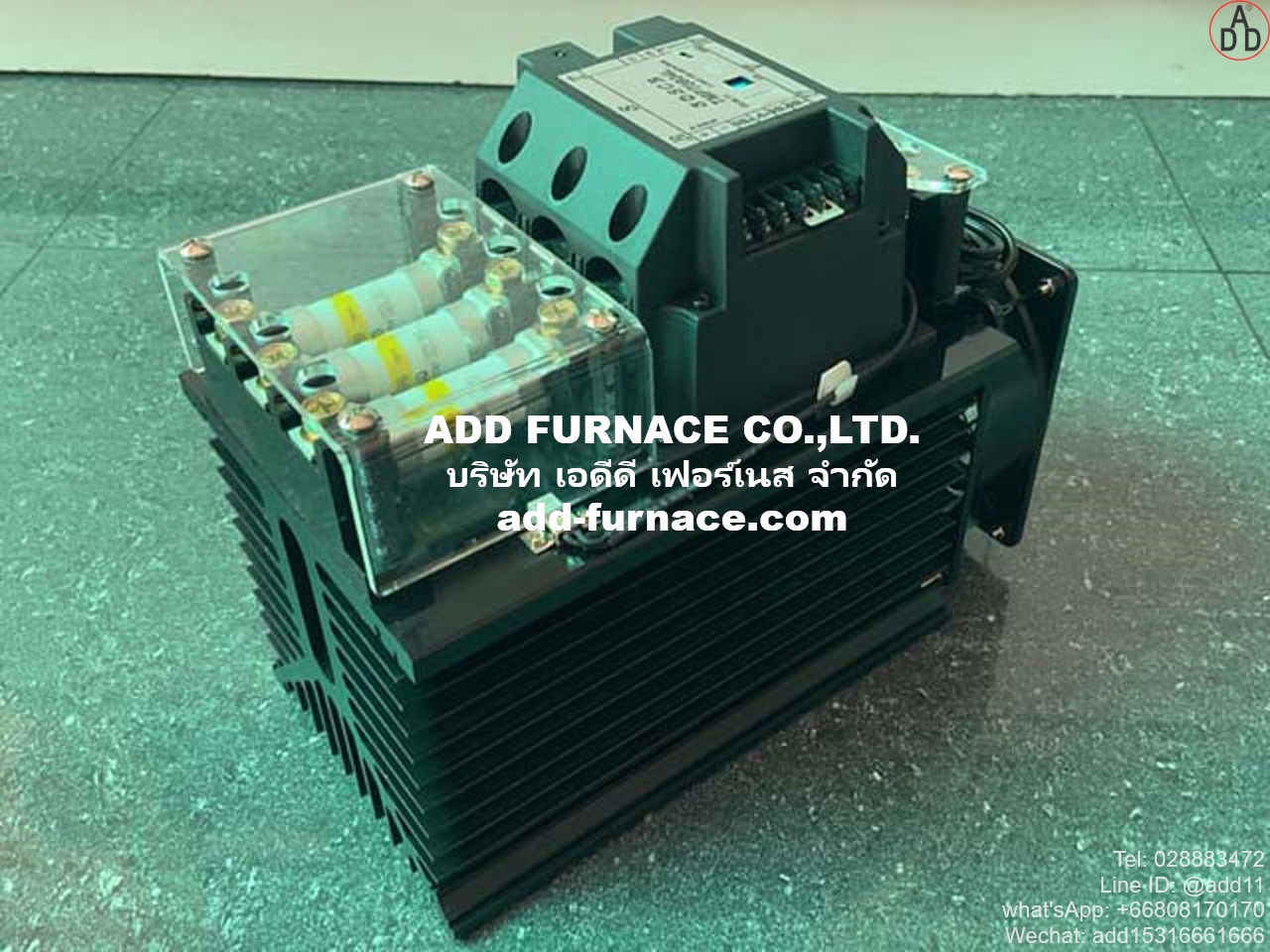

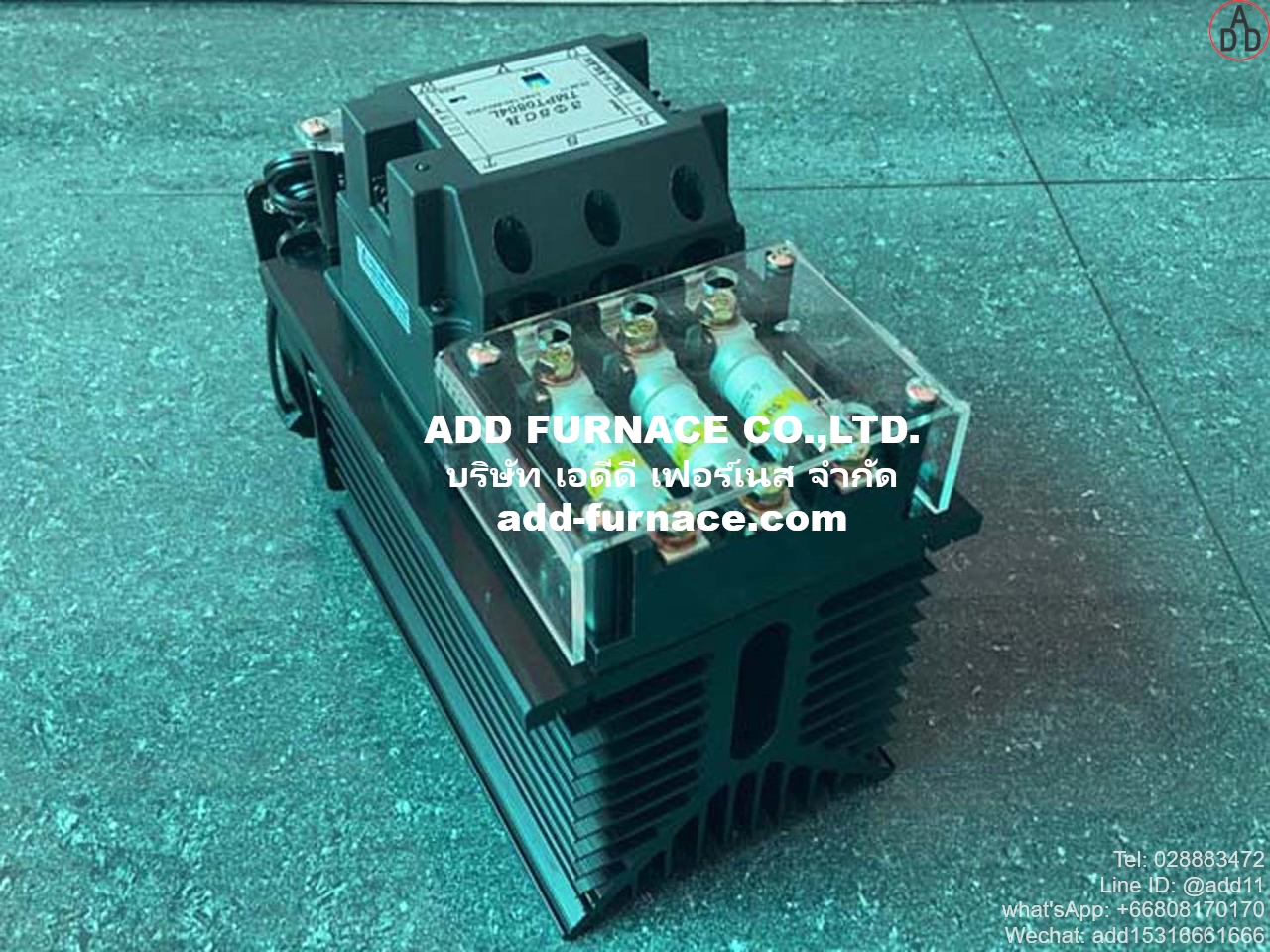

SCR TMPT0804L 80A 180/480V Power Regulator

SCR TMPT0804L 80A 180/480V Power Regulator

Power Regulator 3Φ phase power controller
Model : TMPT0804L
Load Current Rating : 80A
Load Voltage : 180/480V
Auxiliary Power : 88-264V(50Hz/60Hz)
Min Load Current : 0.6A
Off state Leakage Current : 8mA(R.C FILTER)
Power consumption : 3.2w(Max)
Frequency Range : 50Hz or 60Hz ±5%
Control type : DCA(4-20mA.0-20ma).DCV(0-5V,1-5V,2-10V,0-10V)
Input Resistance : DCA(250Ω）DCA（4.7Ω or 10kΩ)
Isolution Voltage : AC2000V(1 MIN)
Weight : 3475g.
Dimension : L237xW126xH170mm
Made in TaiWan
