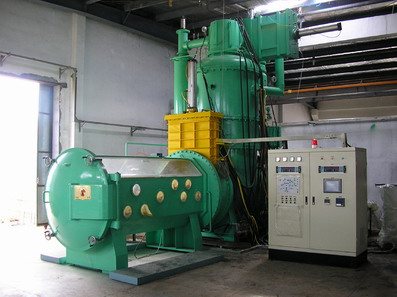

product：three-room oil quenching vacuum furnace
load mode：horizontal
limit vacuum degree（pa）：4×10-4or6.7x10-3
applications:
be suitable to the quenching of alloy steel, spring steel, and stainless steel.
be used in the sintering of magnetic materials.
.
be suitable to the quenching of alloy steel, spring steel, and stainless steel.
be used in the sintering of magnetic materials.
characteristics:
1.quick cooling rate, good uniformity of cooling, perfect uniformity of temperature, small deformation after heat treatment, high production efficiency, low cost, simple operation, flexible input of programming process.
2. manual/semi-automatic/automatic control.
3. automatic fault alarm/display.
4. stable mechanical movement.
2. manual/semi-automatic/automatic control.
3. automatic fault alarm/display.
4. stable mechanical movement.
model |
availability dimension(mm) |
load capacity(kg) |
max temperature(℃) |
temperatrue equality(±℃) |
limit vacuum degree(pa)
|
press ascend rate(pa/h) |
gas cooling pressure(bar) |
| tzcs-433 | 450×300×300 |
60 |
1350 |
5 |
4.0e-1/6.7e-3 |
0.67 |
4 |
| tzcs-644 | 600×400×400 |
200 |
|||||
| tzcs-755 | 700×500×500 |
300 |
|||||
| tzcs-966 | 900×600×600 |
500 |
