Eclipse Burners 120 RAH

Eclipse-BURNER-120-RAH
  • Eclipse AIR HEAT: Eclipse Burners 120 RAH,AH13.109270-01XXXXXX
  • RAH120, S/N 10S0197112-0002-2
  • Type: AH13.109270-01XXXXXX
  • Capacity Range: 1,200,000(Btu/h)=349kW/h=300,000Kcal/h
  • Turndown: 40:1
  • Max. Temperature: 400°C,750°F,
  • Fuels: Natural Gas, Propane(LPG)
  • Applications: Dry-off and curing ovens,Incinerators,Indirect air heating,Textile Drying,Food Processing/baking,Ceramic Drying
  • AH13.109270-01XXXXXX:
  • AH13: Air Heat Burner V.15
  • 109270: Model 109270 - AH 120: 1.2-1.5MM Btu/H(352~440kW/h)378,331Btu/h
  • 01: Firing Position, No.1: Right Hand Horizontal
  • X: Mounting - Less Mounting Flange
  • XX: No Blower Motor
  • X: InletFilterGrille - Less Blower Filter
  • X: Scanner Adapter Option - Less Scanner Adapter
  • X: Pipping Connection: Stardard Piping
  • Brand: Eclipse
  • Made in U.S.A
  • Eclipse Burners 120 RAH (1)
  • Eclipse AirHeat Burners Model RAH
  • Eclipse AirHeat Burners Model RAH Dimension
  • Eclipse Burners 120 RAH (2)
  • Eclipse Burners 120 RAH (3)
  • Eclipse Burners 120 RAH (4)

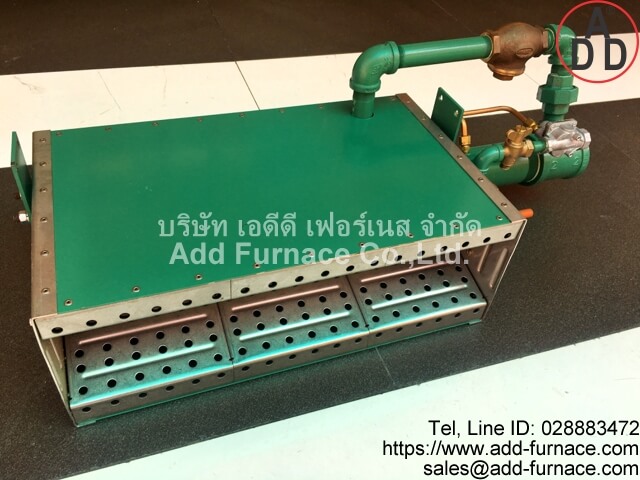

  • Eclipse Burners 120 RAH (5)
  • Eclipse Burners 120 RAH (6)
  • Eclipse Burners 120 RAH (7)
  • Eclipse Burners 120 RAH (8)
  • Eclipse Burners 120 RAH (9)

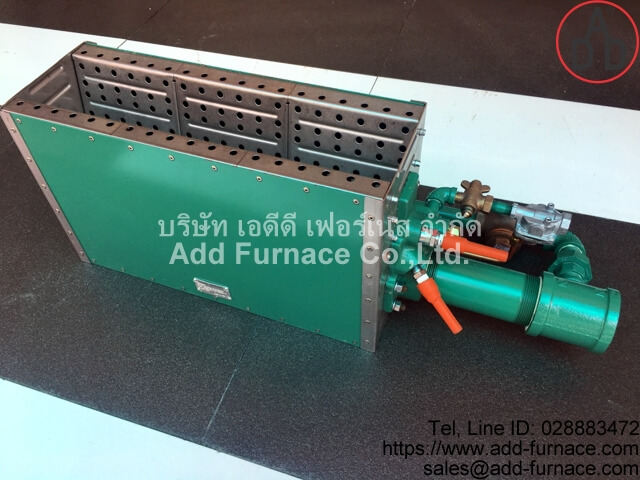

  • Eclipse Burners 120 RAH (10)
  • Eclipse Burners 120 RAH (11)
  • Eclipse Burners 120 RAH (12)
  • Eclipse Burners 120 RAH (13)
  • Eclipse Burners 120 RAH (14)
  • Eclipse Burners 120 RAH (15)
  • Eclipse Burners 120 RAH (16)
  • Eclipse Burners 120 RAH (17)
