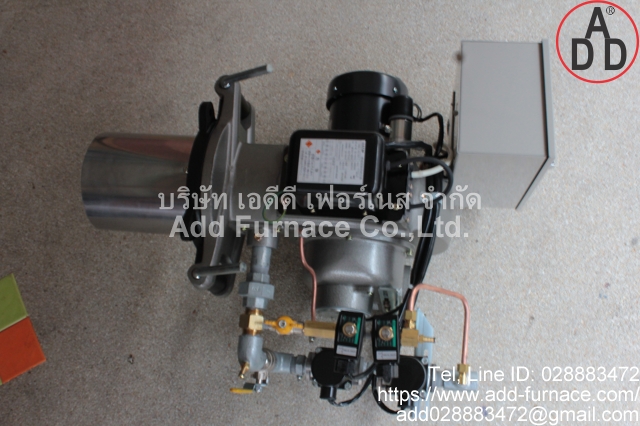

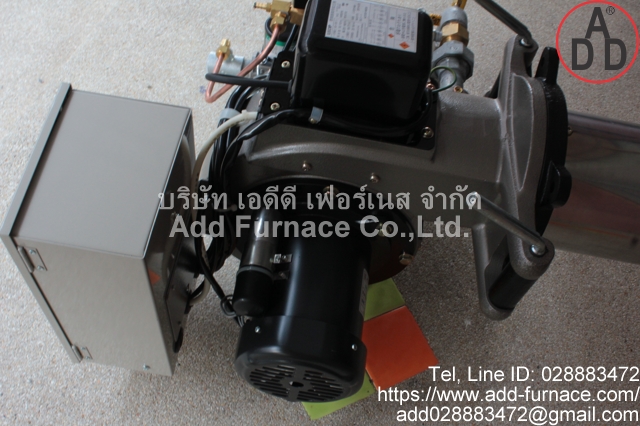

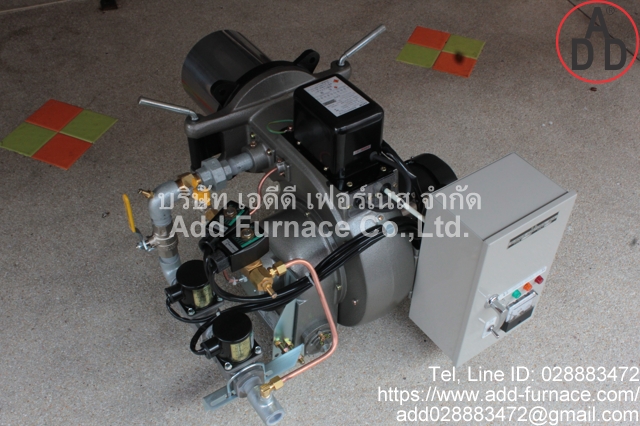

KATO Gas Burner KG-21

KATO Gas Burner KG-21(233Kw)

Pilot Burner: KATO Gas Burner KG-21
Capacity: 795,028Btu/h = 200,343Kcal/h = 233Kw
Operation: Two stage
Inlet Gas Pressure: 2.8kPa = 28mBar = 11.2"WC
Input Voltage: 220VAC 50/60H
Burner Control: Azbil R4750A
Ignition Tranformer: Lecip G7023-ZC
Gas Solenoid Valve: CKD
Sensor: Flame Rod
Brand: KATO BURNER Kato Gas Burner KG-Series Catalog
Burner and Burner accessories Made in Japan 100%

Related Links:

Origin: Japan 100%

Capacity:197,904Btu/h=49,871Kcal/h

LPG Burner, Two stage Control

Model KG-5(58kW)
Origin: Japan 100%

116kW/h=395,808Btu/h=99,742Kcal/h

LNG Burner, Two stage Control

Model KG-10N(116Kw)
Origin: Japan 100%

Input: 100V 50/60Hz

Signal Check: Flame Rod

Burner Controller KB-5015B
Origin: Japan 100%

Input: 200V 50/60Hz

Signal Check: UV SENSOR

KB-6050C Burner Controller(200V)
Origin: Japan 100%

AC 200V

Pilot Burner

KM603A200
