SRS11A-8YN-90-N1400

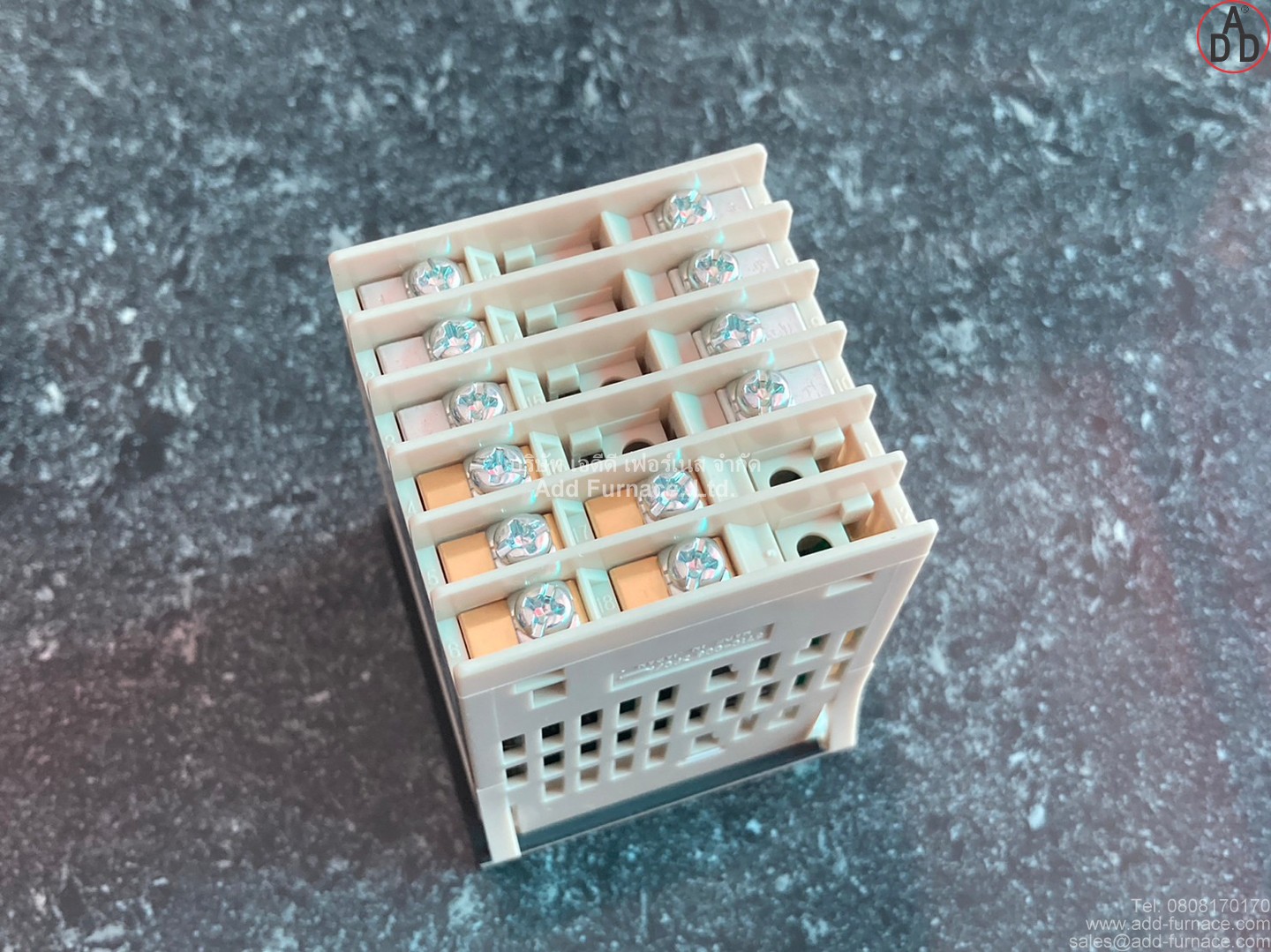

Shimaden Temperature Controller
Type : SRS11A-8YN-90-N1400
SRS11A : DIN 48x48 Digital Controller
Input : Multi-input Thermocouple: B, R, S, K, E, J, T, N, PLII, WRe5-26, {U, L (DIN43710)}, AuFe-Cr R.T.D.: Pt100/JPt100 Voltage (mV): -10 – 10, 0 – 10, 0 – 20, 0 – 50, 0 – 100, 10 – 50mV DC
CONTROL OUTPUT 1 : Contact: 1a, Contact capacity: 240V AC 2A/resistive load Proportional cycle: 1 – 120 sec
CONTROL OUTPUT 2 (OPTION) : None
POWER SUPPLY : 100 – 240V AC±10%, 50/60Hz
PROGRAM FUNCTION (OPTION) : None
EVENT OUTPUT (OPTION) : Event output 2 points (EV1, EV2)
ANALOG OUTPUT/CONMMUNICATION FUNCTION (OPTION) : 4 – 20mADC Resistive load: 300Ω max.
EXTERNAL INPUT CONTROL SIGNAL (DI)/CT INPUT (OPTION) : None
REMARKS : Without
Brand: Shimaden
How to Shimaden SRS Standard
How to Shimaden SRS Programmer
How to Shimaden SRS Manual Output
Origin: Made in Japan 100%
SRS11A Product Catalog
