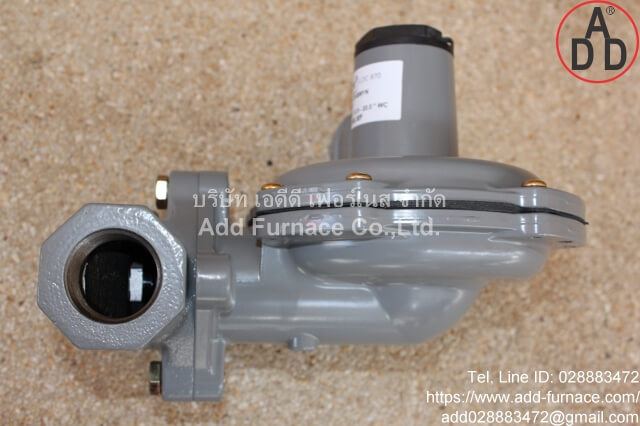

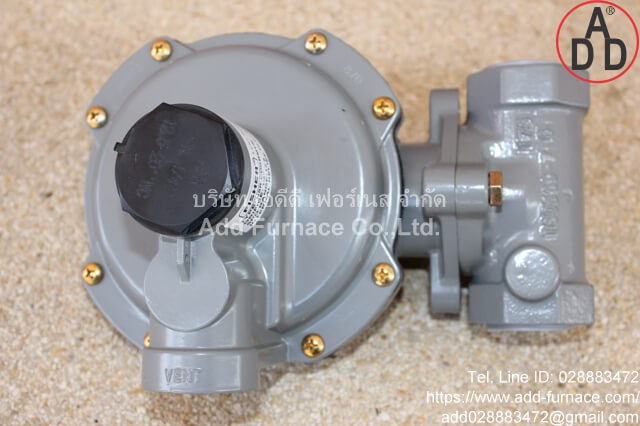

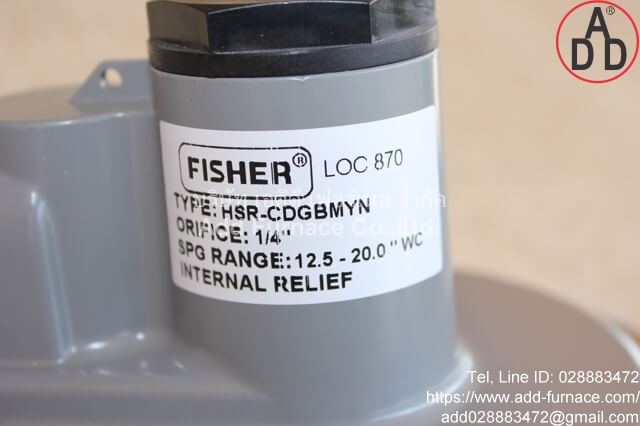

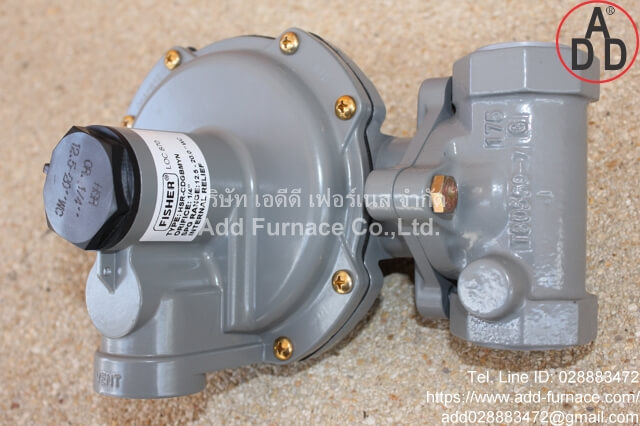

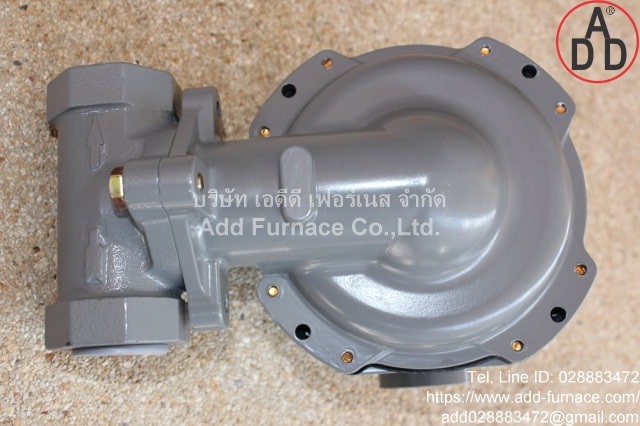

Fisher HSR-CDGBMYN | Gas regulator
.jpg)
- Gas Pressure Regulator:Fisher HSR-CDGBMYN คู่มือ
- inlet pressure: 60psi (4.2kg/cm^2) ตารางเปรียบเทียบหน่วย
- outlet pressure range: 12.5"~20" WC (31~50mbar) ตารางเปรียบเทียบหน่วย
- inlet & outlet connections: 1" Fnpt
- capacity btu/hr propane: 8,900,000
- origin: U.S.A
- brand: Fisher
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

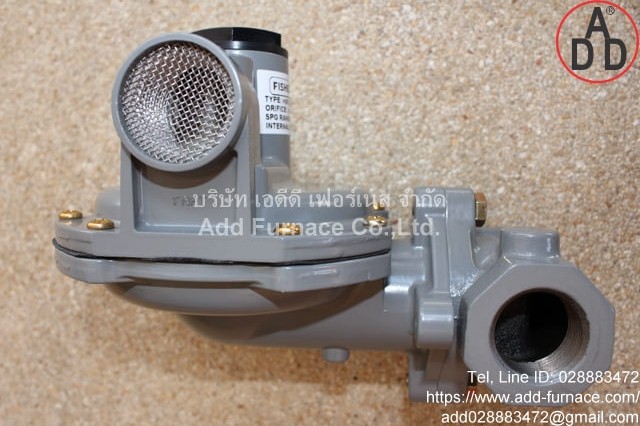

- HSR Pressure Regulators Type HSR direct-operated, spring-loaded pressure regulators provide economical pressure reducing control in a variety of residential, commercial, and industrial applications. Type HSR pressure regulators can be used with natural, manufactured, or liquefied petroleum gases. In addition, Type HSR pressure regulators have internal relief across the diaphragm to help minimize overpressure. Any outlet pressure above the start-to-discharge point of the nonadjustable relief valve spring moves the diaphragm off the relief valve seat, allowing excess pressure to bleed out through the screened spring case vent.
Related Links:
Size: 1/4"FNPT
Inlet pressure: 225 psi / 15.5 bar
Outlet pressure:50~150 psi
Fisher 1301F-2
Type 627-1217-29855
Size: 1" FNPT
Inlet pressure: 250psi / 17.2 bar
Outlet pressure: 5~20psi
Size: 1" FNPT
Inlet pressure: 60 psi / 4.1bar
Outlet pressure: 82~151mbar
Fisher Controls Type HSR-CDJAMYN
Size: 1/4" FNPT
Inlet pressure: 250 psi / 17.2 bar
Outlet pressure: 9.5~13"/22~32mbar
Fisher Loc 870 Type 912-104
Size: in1/4" out 3/8" NPT
Inlet pressure: 225 psi / 15.5 bar
Out pressure:0.5~2.5psi/34~172mbar
Fisher Loc 870 Type 912H-108
Size: 1/2" Outlet 3/4"
Inlet pressure: 250psi (17.5kg/cm^2)
Outlet pressure:9.5~14"/22~32mbar
Fisher R632A-JFF
Size: 1/2" FNPT
Inlet pressure: 10 psi / 0.6 bar
Outlet pressure: 9.5~13"/22~32mbar
Fisher Loc 870 Type R222-BAF
Size: 1" FNPT
Inlet pressure: 10 psi / 0.68 bar
Outlet pressure: 9.5~13"/22~32mbar
Fisher HSRL-CFC
Size: 1" FNPT
Inlet pressure: 60 psi / 4.1 bar
Outpressure: 12.5~20"/31~49.8mbar
Fisher Controls Type HSR-CDGAMYN
Size: 1.1/4",2" FNPT
Inlet pressure: 20 psi / 1.3 bar
Outlet pressure: 10~14wc/25~32mbar
Fisher CS400IR-8E
Size: 2" FNPT
Inlet pressure: 250 psi / 17.2 bar
Outlet pressure: 8~20psi/0.5~1.3bar
Fisher Big Joe Type 630-322
Size: 2" FNPT
Inlet pressure: 225 psi / 15.5 bar
Outlet pressure: 17~137mbar
Fisher Controls Type A 99-510
Size: 1.1/2", 2" FNPT
Fisher Type 299H-41
Size:1 1/4"FNPT
Fisher Emergency shutoff
Outlet pressure: 250 psi / 17.2 bar
Fisher N551-10(New)
Size:2" FNPT
Inlet pressure: 60 psi / 4.1 bar
OutletPressure:14~30"wc/35~75mbar
Fisher Type No CS800IR
Size: 11/4"FNPT
Inlet pressure: 225 psi
Outlet pressure: 225 psi
Fisher Emergency shutoff P164b
Size: 1/4"FNPT
Inlet pressure: 250 psi / 17.2 bar
Outlet pressure:250 psi / 17.2 bar
Fisher H110-250 Relief Valve
Size: 1/8"x10m FNPT
Inlet pressure: 225 psi / 15.5 bar
Outlet pressure: psi
Fisher P164B
Size: 2" FNPT
Inlet pressure: 250 psi / 17.2 bar
Outlet pressure: 250 psi / 17.2 bar
Fisher N550-16 Emergency shutoff
