C26TC0UA1000

C26TC0UA1000

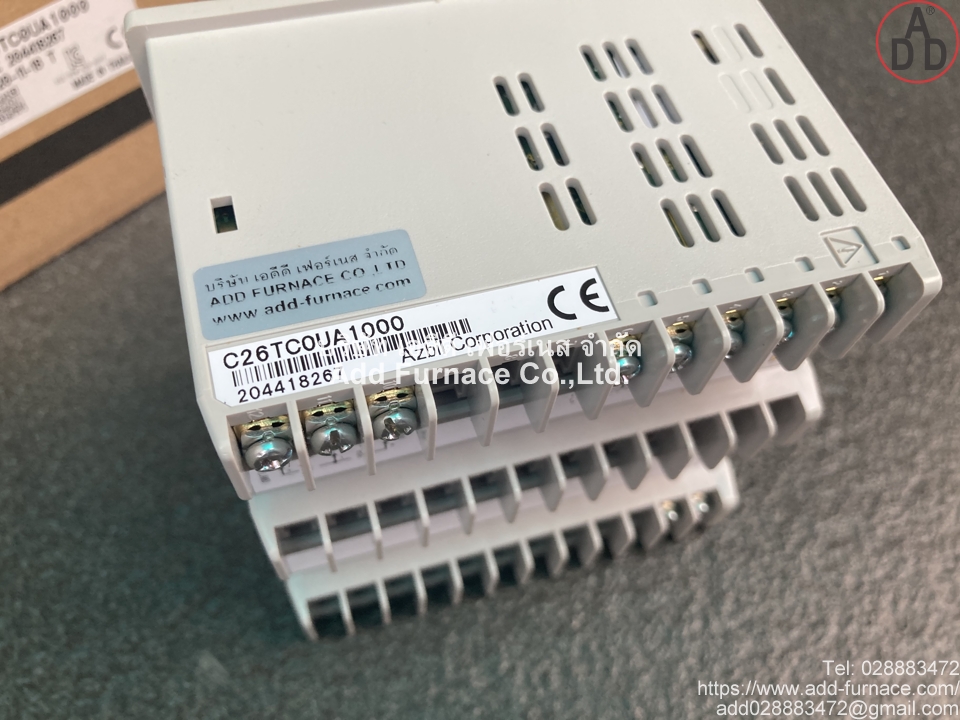

  • azbil SDC26 Series Single Loop Controller: C26TC0UA1000
  • C26-T-C0-U-A-1-0-0-0
  • High accuracy of ±0.3%FS and sampling cycle of 0.3s(seconds)300ms
  • C26: Mask size 96 mm x 96 mm x 65 mm
  • T: Panel mounting type
  • C0: Current output 4-20mA
  • U: Universal
  • A: AC model(100 to 240 Vac) 50/60Hz
  • 1: Event relay output: 3 points
  • 000: None
  • azbil SDC25/SDC26 Manual
  • Brand: azbil
  • Made in Thailand
  • C26TC0UA1000 (6)

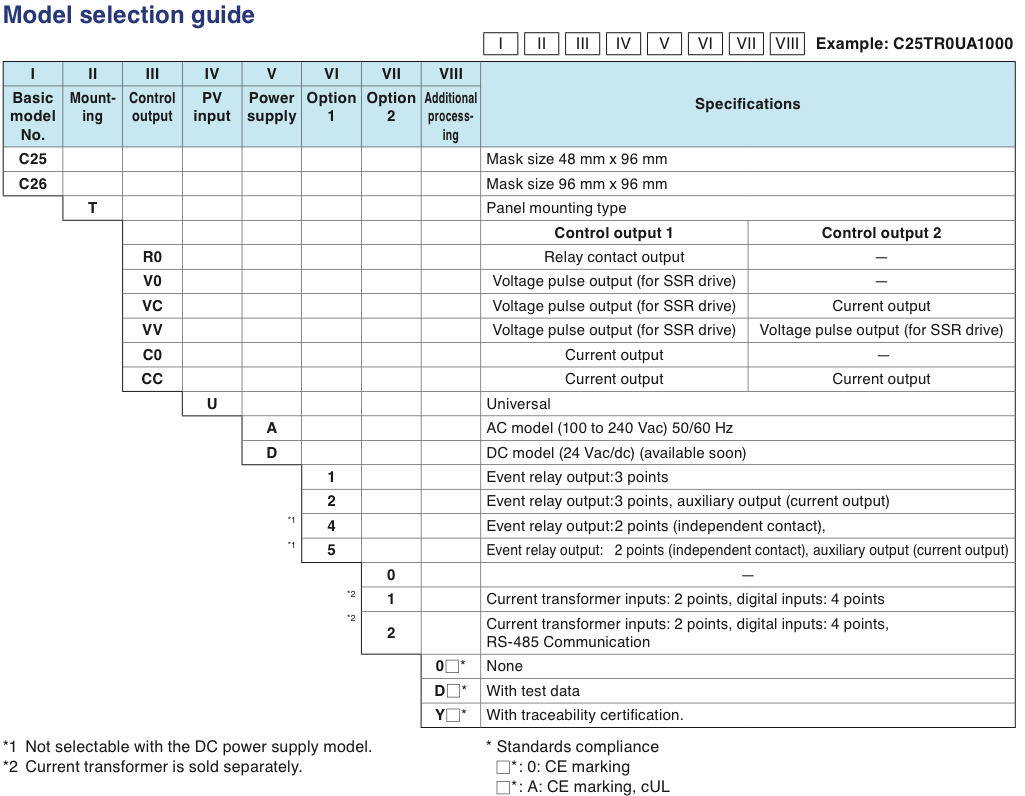

  • azbil C25 C26 Series Model Selection Guide (2)
  • C26TC0UA1000 (2)
  • C26TC0UA1000 (3)
  • C26TC0UA1000 (4)
  • C26TC0UA1000 (5)
  • C26TC0UA1000 (1)
  • C26TC0UA1000 (7)
  • C26TC0UA1000 (8)
