R36TR1UA2100

azbil SDC36 | R36TR1UA2100
  • azbil temperature controller: azbil R36
  • type: R36TR1UA2100
  • size: 96mm x 96mm x 65mm
  • R36: Basic model No: R36,
  • T: Mounting Pannel mounting type,
  • R1: Control output Relay contact output for motor drive,
  • U: PV input Universal,
  • A: Power supply AC model 100~240Vac,
  • 2: Option Eevent relay output:2points(independent contact)
  • 1: Option Current transformer inputs: 2 points, Digtial inputs: 4Points
  • 0: Additional processing:
  • 0: Standard compliance CE marking
  • Brand: Azbil
  • azbil R36 model selection guide

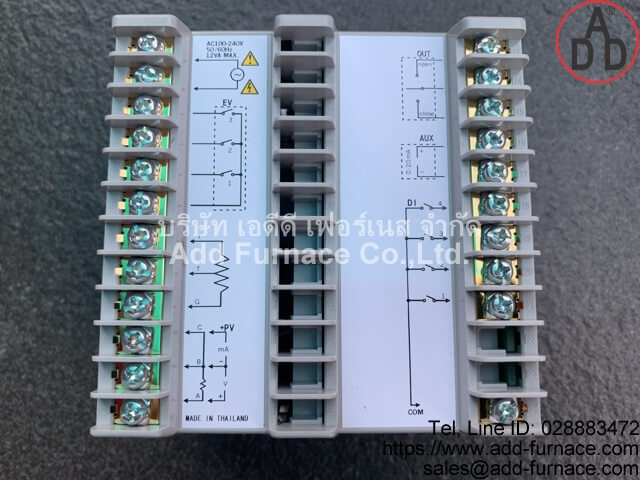

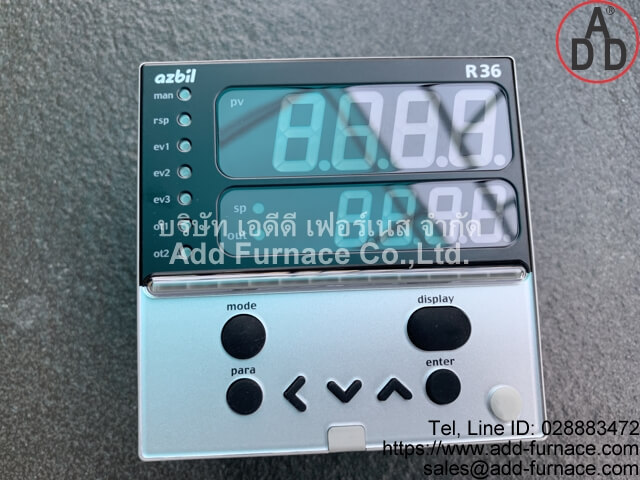

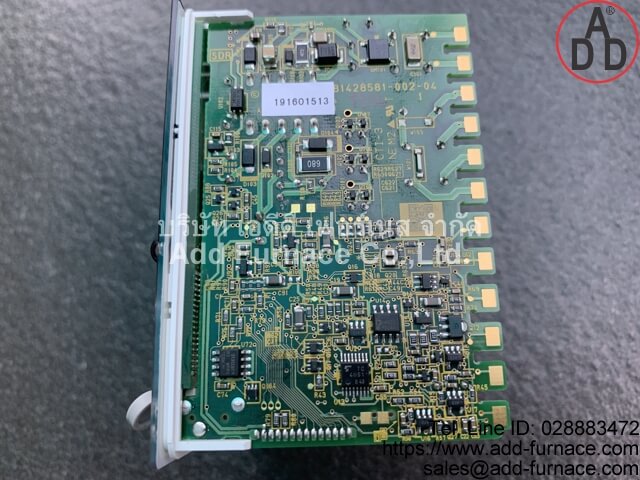

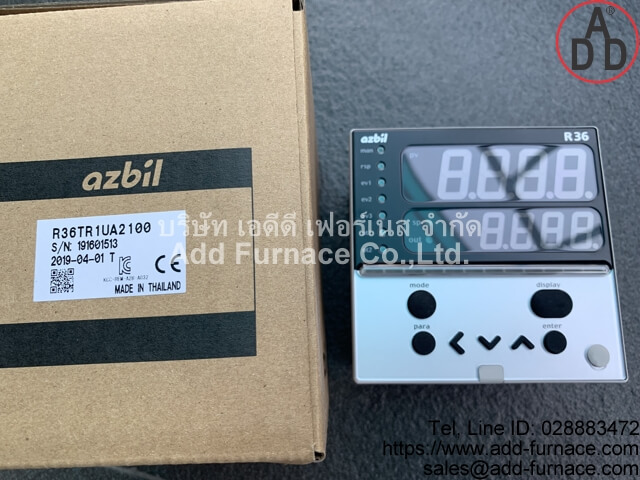

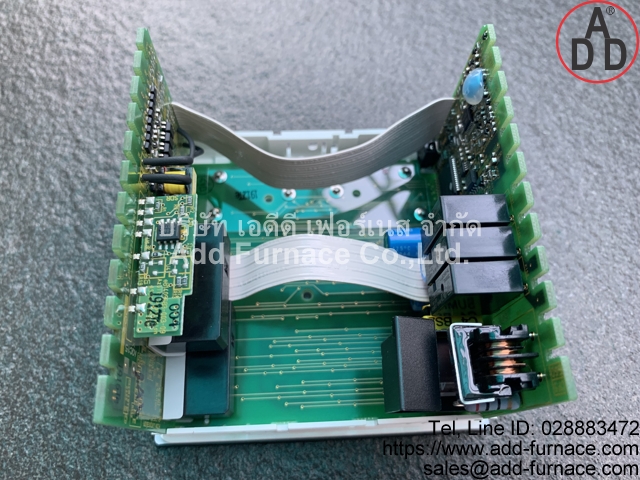

  • R36TR1UA2100 (1)
  • R36TR1UA2100 (2)
  • R36TR1UA2100 (3)
  • R36TR1UA2100 (4)
  • R36TR1UA2100 (5)
  • R36TR1UA2100 (6)
  • R36TR1UA2100 (7)
  • R36TR1UA2100 (8)
  • R36TR1UA2100 (9)
  • R36TR1UA2100 (10)
  • R36TR1UA2100 (11)
  • R36TR1UA2100 (12)
  • R36TR1UA2100 (13)
