Five North American Gas Burner 4422-6

Five North American Gas Burner 4422-6
  • Industry Gas Burners: Five North American Gas Burner 4422-6
  • Model: 4422-6
  • Capacity: 1,475,000Btu/h(432kW/h=371,700kcal/h)
  • Gas Pressure: 14inch wc(34.8mBar)
  • Air Pressure: 16inch wc(40mBar)
  • Flame length: 48inch=1219mm
  • Max tempeature: 1450'C = 2642F
  • Inlet Gas Size: 1.1/2inch NPT, Air Size: 3inch NPT
  • Sensor: Flame Rod or Uv Sensor
  • Brand: Five North American Kato Burner Co.,Ltd.Five North American Gas Burner 4422-6 Specifications
  • Made in U.S.A 100%
  • Applications: Tempering Furnaces, Hardening Furnaces, Reheating Furnaces, Fluidized Bed Dryers, Thermal Oxidizers, Non-Ferrous Melting,Ladle/Tundish, Glass Lehrs Environmental Applications,Preheated Air
  • Five North American Gas Burner 4422-6 (1)
  • Five North American Gas Burner 4422-6 Diemension
  • Five North American Gas Burner 4422-6 (2)
  • Five North American Gas Burner 4422-6 (3)
  • Five North American Gas Burner 4422-6 (4)
  • Five North American Gas Burner 4422-6 (5)

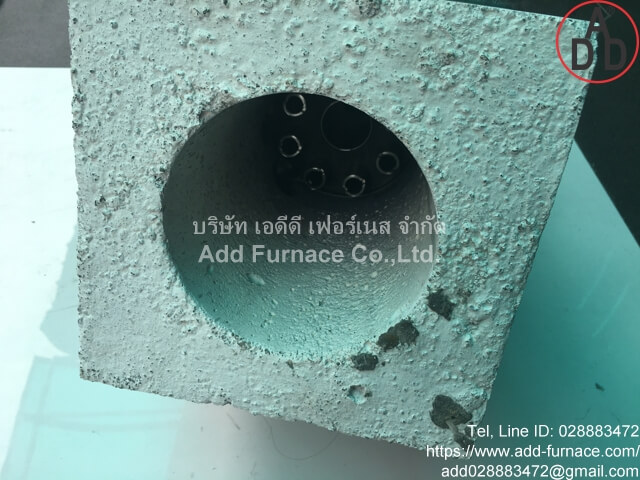

  • Five North American Gas Burner 4422-6 (6)

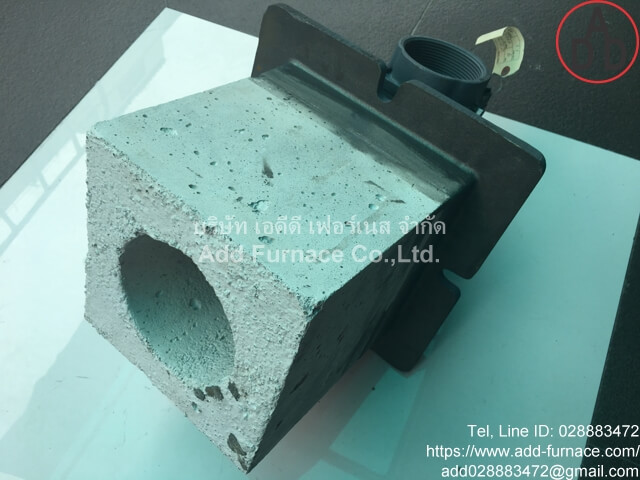

  • Five North American Gas Burner 4422-6 (7)

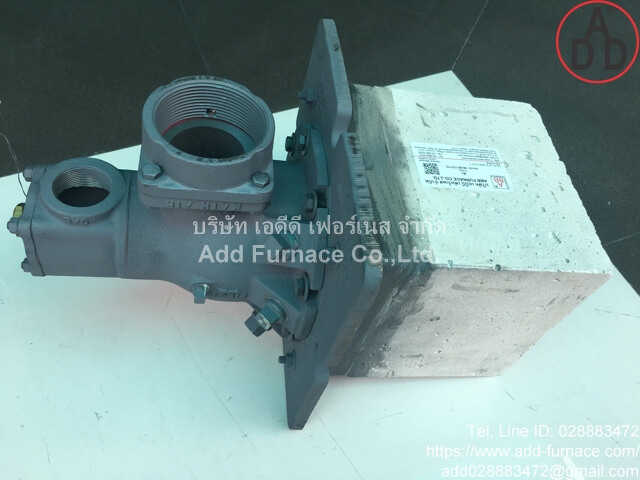

  • Five North American Gas Burner 4422-6 (8)
  • Five North American Gas Burner 4422-6 (9)
  • Five North American Gas Burner 4422-6 (10)
  • Five North American Gas Burner 4422-6 (12)
  • Five North American Gas Burner 4422-6 (13)
  • Five North American Gas Burner 4422-6 (14)

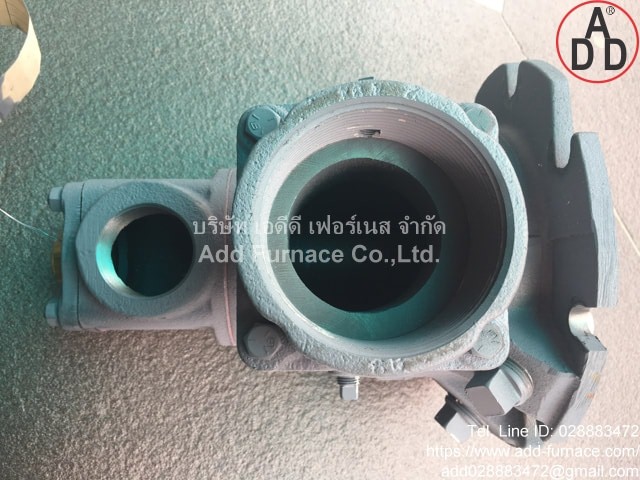

  • Five North American Gas Burner 4422-6 (15)
  • Five North American Gas Burner 4422-6 (16)
  • Five North American Gas Burner 4422-6 (17)
  • Five North American Gas Burner 4422-6 (18)
  • Five North American Gas Burner 4422-6 (19)
  • Five North American Gas Burner 4422-6 (20)
