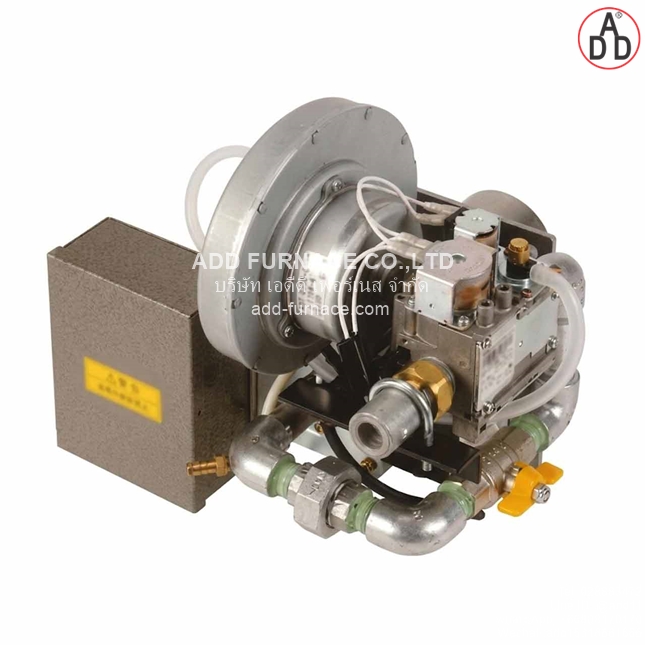

KATO FK-5RP

KATO FK-5RP
  • Pilot Burner FK-5RP
  • Model:FK-5RP
  • Combustion Capacity: 58 kW
  • Fuel Gas Consumption – LPG: 2.1 m³/h
  • Fuel Gas Consumption – 13A: 4.5 m³/h
  • Power Supply: AC100V 1-Phase
  • Motor Output: 0.02 kW
  • Control Method: Proportional Control (DC 4–20 mA)
  • Ignition Method: Direct Ignition
  • Combustion Method: Premixed Combustion System
  • Flame Detector: Flame Rod / Ultraviolet Sensor
  • Air Pressure Detection: Air Flow Switch
  • Gas Connection Size: 15A
  • Made in JAPAN
  • FKP Series Product Catalog
  • KATO FK-5RP (1)
