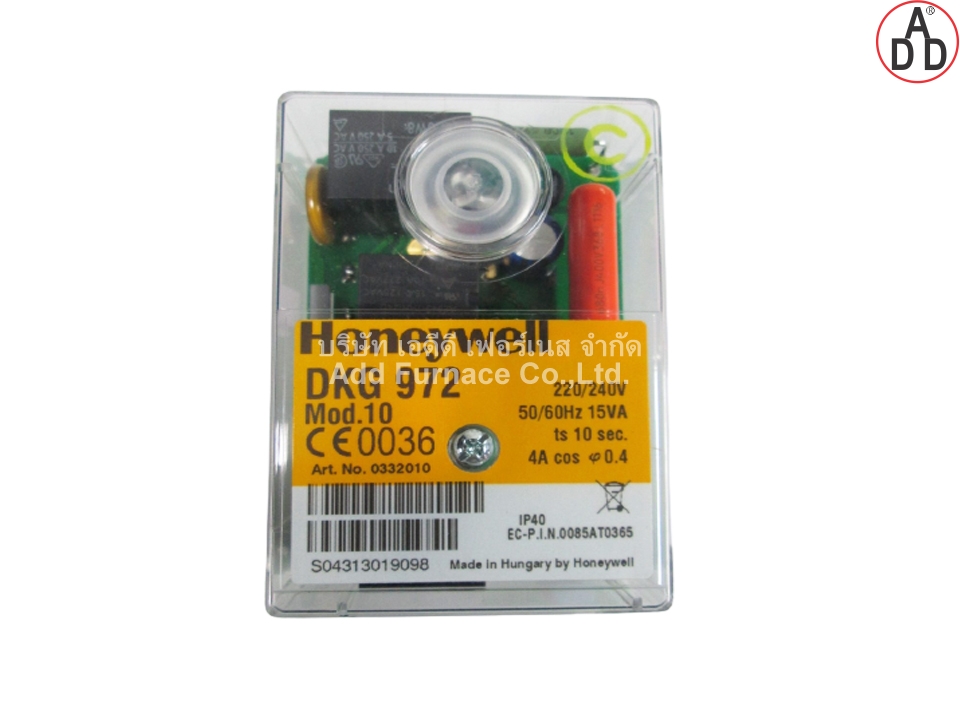

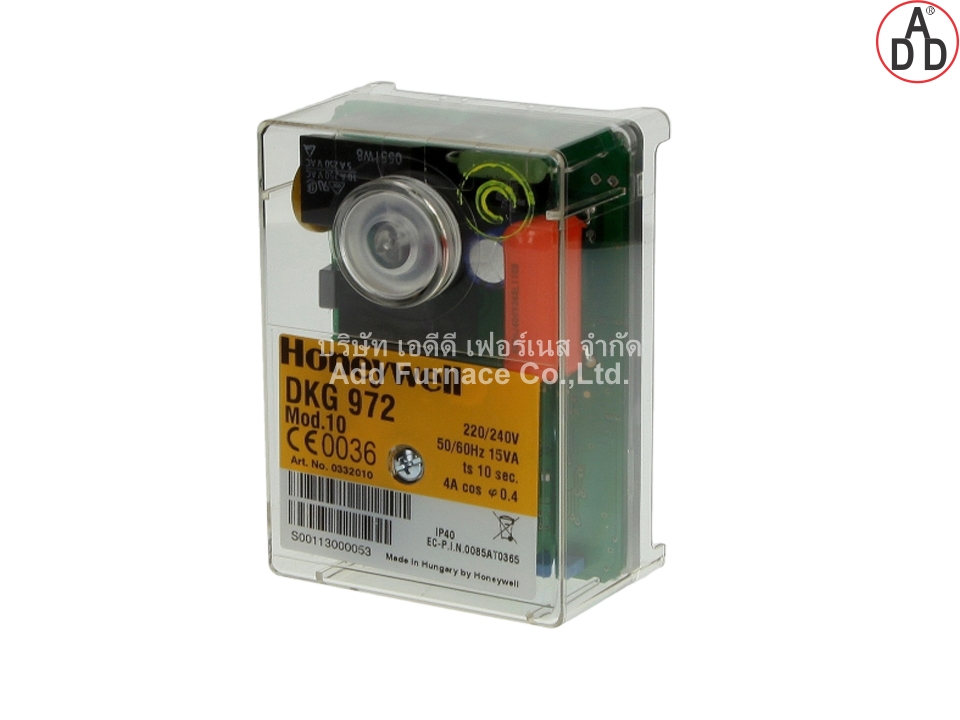

Honeywell DKG 972 Mod.10
.jpg)
- Gas Burner Safety Control DKG 972
- Type:DKG 972 Mod.10
- Art.NO.0332010
- Operating voltage:220/240V,50/60Hz
- Power consumption:15VA
- safety time(ts):10sec.
- Max. load per output:4A,cos φ 0.4
- Protection class:IP 40
- Made in Hungary by Honeywell
DKG 972 Standard Manual
.jpg)
.jpg)
.jpg)
.jpg)
