HopeBurner Type EXA-1A

HopeBurner Type EXA-1A
  • (Gas)ニュールミナスガスバーナー 丸型タイル: HopeBurner Type EXA-1A
  • รุ่นType型式: EXA-1A
  • แคลอรี่Max capacity燃焼容量: 97kW(83x1,000kcal/h)
  • แก๊สเข้าGas Inlet Pressure基準圧ガス: 2~10kPa(20~100mBar),อากาศAir Inlet Pressure基準圧エアー: 6kPa (60mBar)
  • ขนาดท่อแก๊สGas Inlet接続口径ガス: RC 1", ท่ออากาศเข้าAir Inlet続口径エアー: RC 1.1/4"
  • Circumstanes temperature : 1400'C
  • Applications: Nozzle-mixing type burner. Very stable combustion can be obtained even if with excessair. As high-speed combustion mixes fluids in the furnace, heating is uniform. Further, a high turndown tatio is so big that it is possible to regulate the control of temperature to the extent of low temperature.
  • ยี่ห้อBrand: HOPE
  • Made in Japan
  • HopeBurner Type EXA-1A (1)
  • Excess Air Gas Burner Square Tile

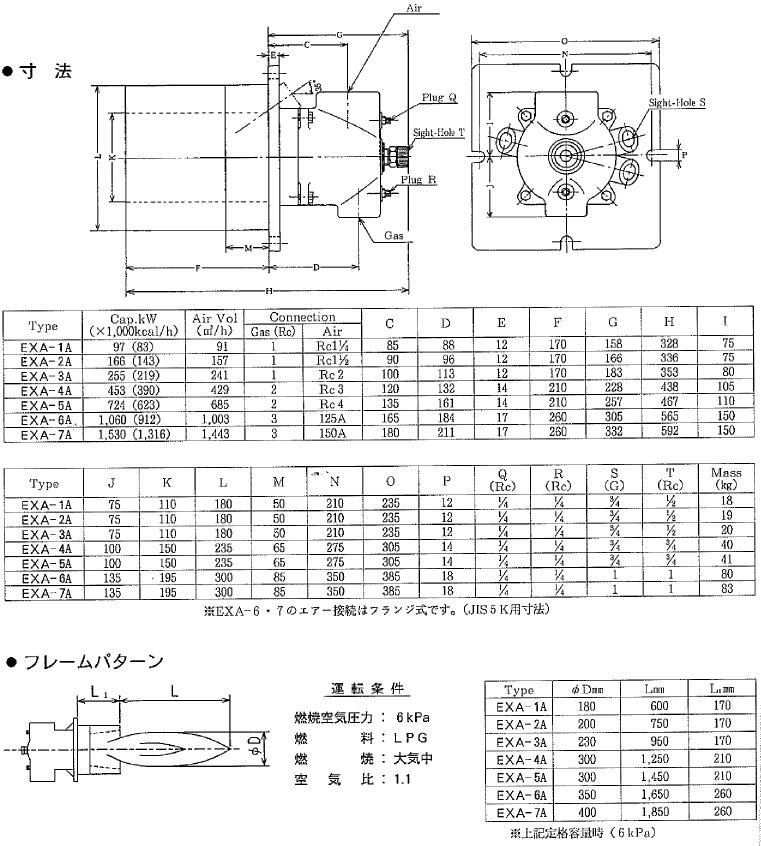

  • Excess Air Gas Burner Dimension and Flame Pattern
  • HopeBurner Type EXA-1A (2)
  • HopeBurner Type EXA-1A (3)
  • HopeBurner Type EXA-1A (4)
  • HopeBurner Type EXA-1A (5)
  • HopeBurner Type EXA-1A (6)
  • HopeBurner Type EXA-1A (7)
  • HopeBurner Type EXA-1A (8)

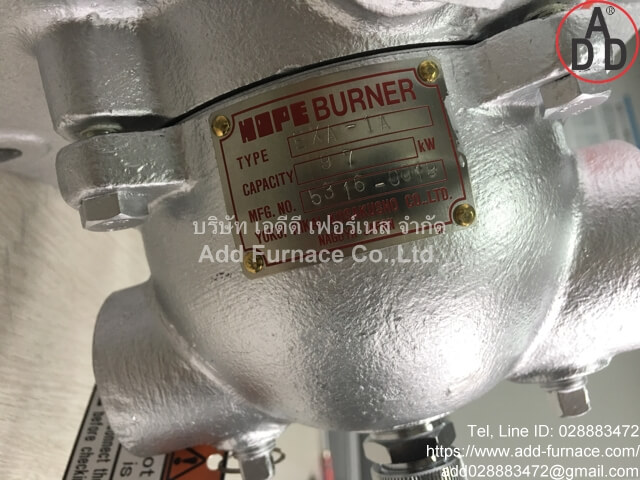

  • HopeBurner Type EXA-1A (9)

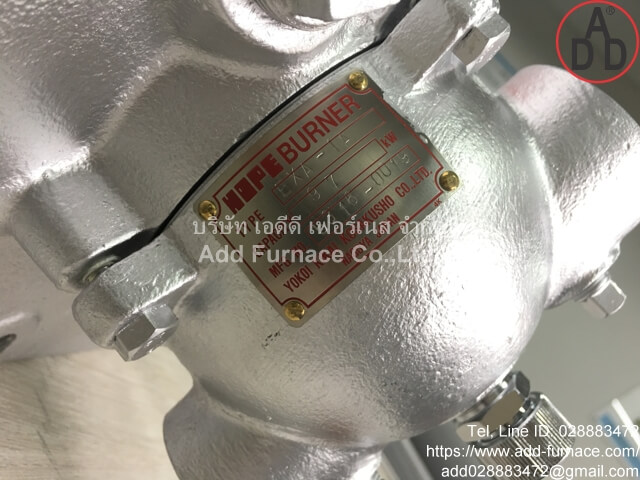

  • HopeBurner Type EXA-1A (10)
  • HopeBurner Type EXA-1A (11)
  • HopeBurner Type EXA-1A (12)
  • HopeBurner Type EXA-1A (13)
  • HopeBurner Type EXA-1A (14)

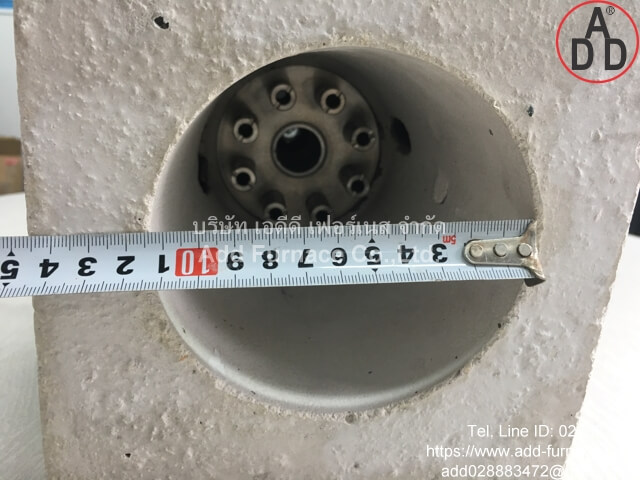

  • HopeBurner Type EXA-1A (15)
