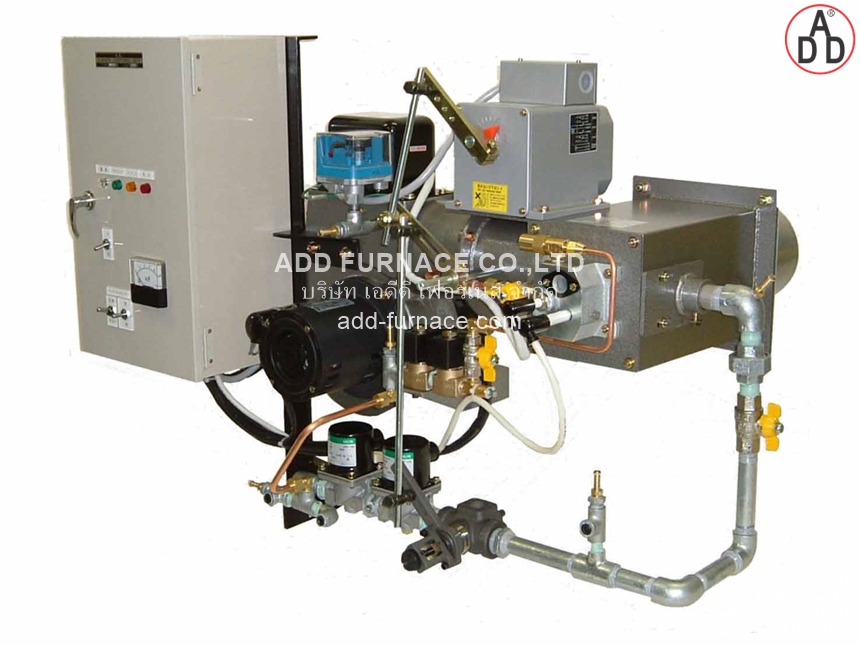

Pilot Burner Gas Burner KGM-20
.jpg)
- Pilot Burner: KATO Gas Burner KGM-20
- Capacity: 795,028Btu/h = 200,343Kcal/h = 233kW
- Gas Consumption: 8.3 m³/h LPG
- 13A (City Gas): 18.2, 6C: 44.4
- Motor Output: 0.25kW
- Control Method: Proportional Control
- Ignition Method: Pilot Ignition Type
- Combustion Method: Premixed Combustion
- Flame Detection: Flame Rod
- Air Pressure Monitoring: Air Flow Switch / Pressure Switch
- Burner Connection Size – LPG: 20A
- Burner Connection Size – 13A: 25A
- Burner Connection Size – 6C: 40A
- Brand: KATO BURNER
Kato Gas Burner KGMSeries Catalog - Burner and Burner accessories Made in Japan 100%
