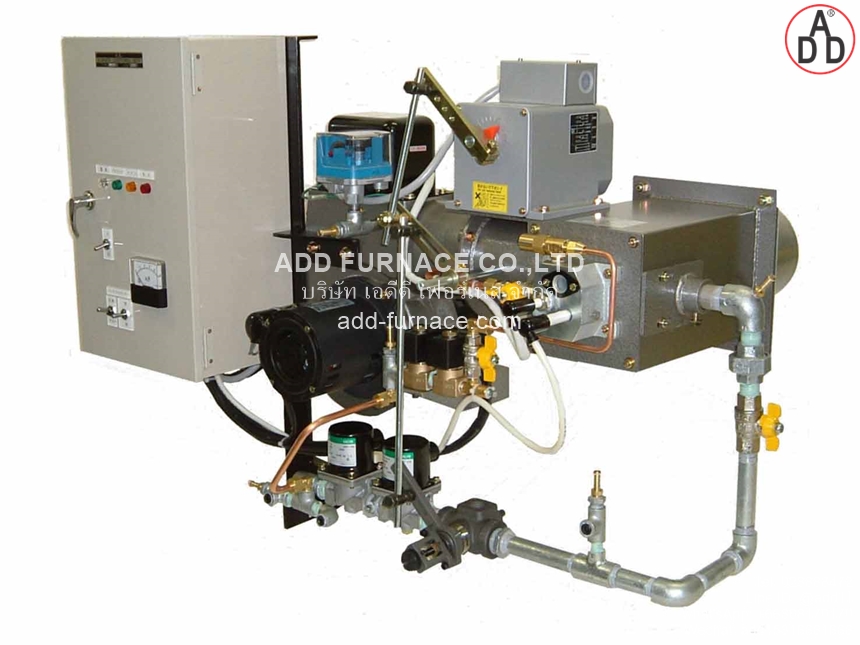

Pilot Burner Gas Burner KGM-30
.jpg)
- Pilot Burner: KATO Gas Burner KGM-30
- Capacity: 1,190,837Btu/h = 300,085Kcal/h = 349kW
- Gas Consumption: 12.5 m³/h LPG
- 13A (City Gas): 27.3, 6C: 66.7
- Motor Output: 0.4kW
- Control Method: Proportional Control
- Ignition Method: Pilot Ignition Type
- Combustion Method: Premixed Combustion
- Flame Detection: Flame Rod (KGM-30) / Ultravision (KGM-50, 75, 100)
- Air Pressure Monitoring: Pressure Switch
- Burner Connection Size – LPG: 25A
- Burner Connection Size – 13A: 40A
- Burner Connection Size – 6C: 50A
- Brand: KATO BURNER
Kato Gas Burner KGMSeries Catalog - Burner and Burner accessories Made in Japan 100%
