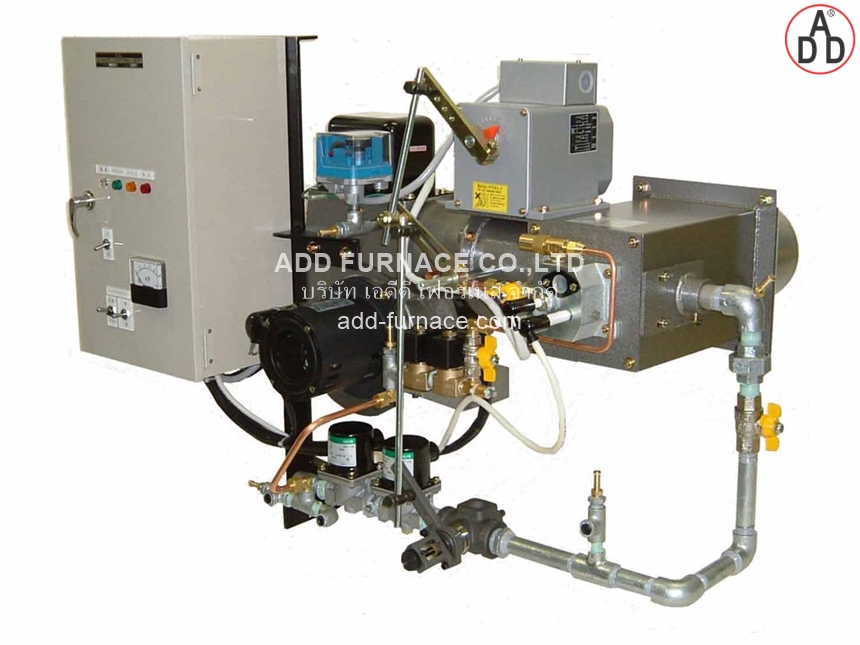

Pilot Burner Gas Burner KGM-50
.jpg)
- Pilot Burner: KATO Gas Burner KGM-50
- Capacity: 1,982,454Btu/h = 499,570Kcal/h = 581kW
- Gas Consumption: 12.5 m³/h LPG
- 13A (City Gas): 45.5, 6C: 111.1
- Motor Output: 0.75kW
- Control Method: Proportional Control
- Ignition Method: Pilot Ignition Type
- Combustion Method: Premixed Combustion
- Flame Detection: Flame Rod (KGM-30) / Ultravision (KGM-50, 75, 100)
- Air Pressure Monitoring: Pressure Switch
- Burner Connection Size – LPG: 32A
- Burner Connection Size – 13A: 40A
- Burner Connection Size – 6C: 65A
- Brand: KATO BURNER
Kato Gas Burner KGM Series Catalog - Burner and Burner accessories Made in Japan 100%
.jpg)
Related Links:
Origin: Japan 100%
Capacity:197,904Btu/h=49,871Kcal/h
LPG Burner, Two stage Control
Model KG-5(58kW)
Origin: Japan 100%
116kW/h=395,808Btu/h=99,742Kcal/h
LNG Burner, Two stage Control
Model KG-10N(116Kw)
Origin: Japan 100%
Input: 100V 50/60Hz
Signal Check: Flame Rod
Burner Controller KB-5015B
Origin: Japan 100%
Input: 200V 50/60Hz
Signal Check: UV SENSOR
KB-6050C Burner Controller(200V)
Origin: Japan 100%
AC 200V
Pilot Burner
KM603A200
