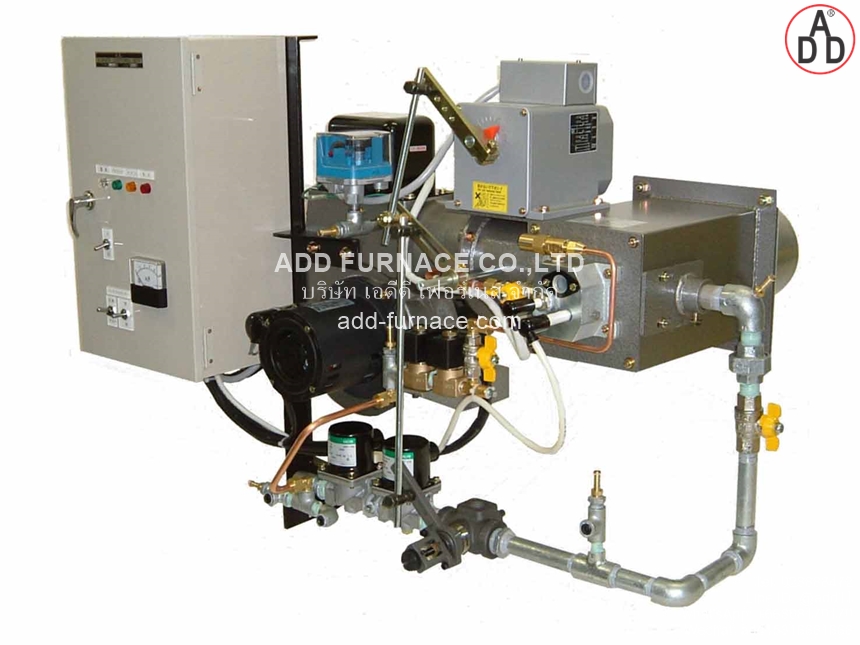

Pilot Burner Gas Burner KGM-75
.jpg)
- Pilot Burner: KATO Gas Burner KGM-75
- Capacity: 2,975,387Btu/h = 749,785Kcal/h = 872kW
- Gas Consumption: 31.3 m³/h LPG
- 13A (City Gas): 68.2, 6C: 111.1
- Motor Output: 1.1kW
- Control Method: Proportional Control
- Ignition Method: Pilot Ignition Type
- Combustion Method: Premixed Combustion
- Flame Detection: Flame Rod (KGM-30) / Ultravision (KGM-50, 75, 100)
- Air Pressure Monitoring: Pressure Switch
- Burner Connection Size – LPG: 40A
- Burner Connection Size – 13A: 50A
- Burner Connection Size – 6C: 65A
- Brand: KATO BURNER
Kato Gas Burner KGM Series Catalog - Burner and Burner accessories Made in Japan 100%
