Azbil R36 With SDC36 Same

Azbil R36 With SDC36 Same
  • azbil SDC36 Series Single Loop Controller: Azbil R36 With SDC36 Same
  • SDC36(Advanced Automation Controller)
  • R36(Building System Controller)
  • High accuracy of ±0.1%FS and sampling cycle of 0.1s(seconds)100ms
  • C36: Mask size 96 mm x 96 mm x 65 mm
  • Example: azbil C36TR1UA2100, azbil R36TR1UA2100
  • T: Panel mounting type
  • R1: Relay contact output for motor drive with MFB
  • U: Universal
  • A: AC model(100 to 240 Vac) 50/60Hz
  • 2: Event relay output: 3 points, auxiliary output(current output)
  • 1: Current transformer inputs: 2 points,digital inputs: 4 points
  • 0: None
  • 0: None
  • Brand: azbil
  • Made in Thailand

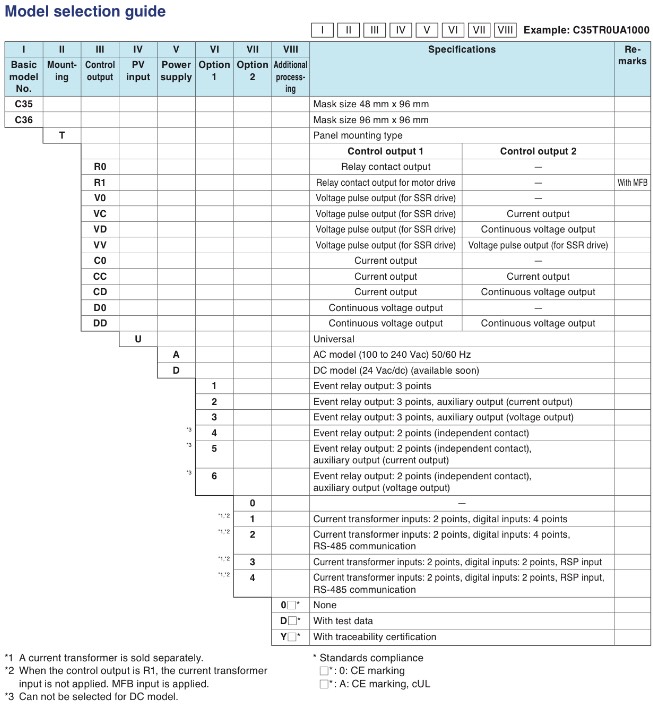

  • Azbil C35 C36 Series Model selection guide
  • Azbil R35 R36 Series Model selection guide
  • Azbil R36 With SDC36 Same (1)
  • Azbil R36 With SDC36 Same (3)
  • Azbil R36 With SDC36 Same (4)
  • Azbil R36 With SDC36 Same (5)
  • Azbil R36 With SDC36 Same (6)
  • Azbil R36 With SDC36 Same (7)
  • Azbil R36 With SDC36 Same (8)
  • Azbil R36 With SDC36 Same (9)
  • Azbil R36 With SDC36 Same (10)
