Home › Azbil Thailand › C35TC0UA1100

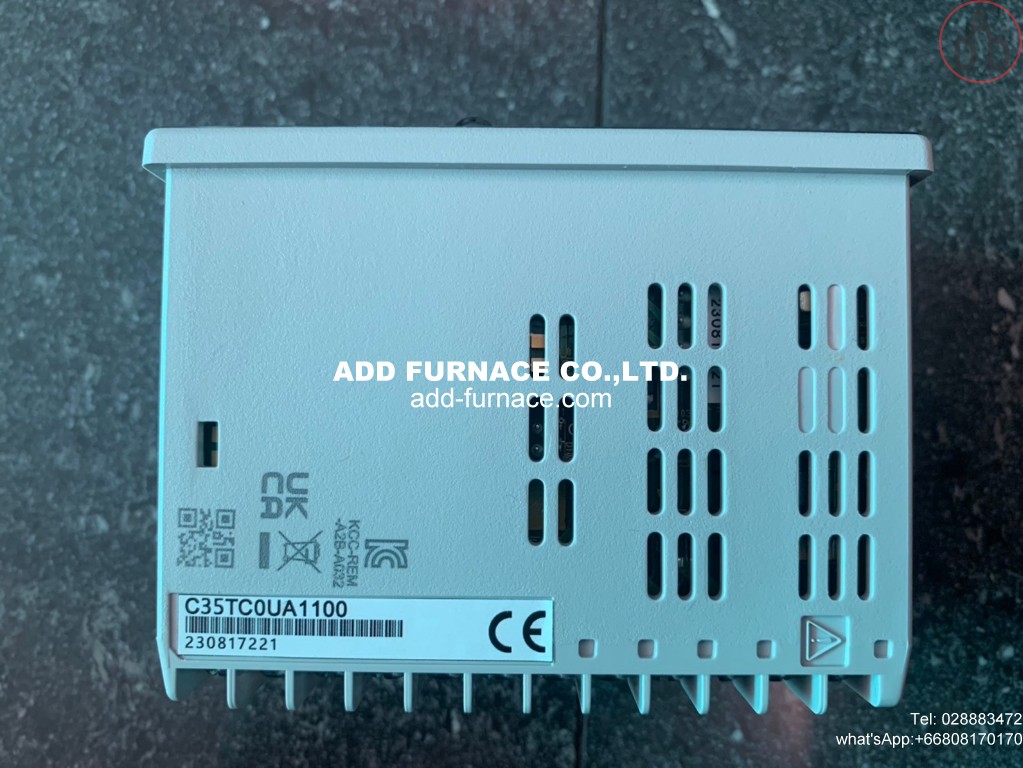

C35TC0UA1100

azbil-c35tc0ua1100
  • Azbil Temperature Controller
  • Type : C35TC0UA1100
  • Basic model No.C35 : Mask size 48 mm x 96 mm
  • Mounting T : Panel mounting type
  • Control output C0 : Current output
  • PV input U : Universal
  • Power supply A : AC model (100 to 240 Vac) 50/60 Hz
  • Option 1 : Event relay output: 3 points
  • Option 1 : Current transformer inputs: 2 points, digital inputs: 4 points
  • Additional processing 0 : None
  • Standards compliance 0 : CE marking
  • Azbil SDC35/36 Standard Manual
  • Full SDC35/36 Manual
  • Brand: Azbil
  • azbil-c35tc0ua1100 (1)
  • azbil-c35tc0ua1100 (2)
  • azbil-c35tc0ua1100 (3)
  • azbil-c35tc0ua1100 (4)
