HopeBurner Type EXA-6A

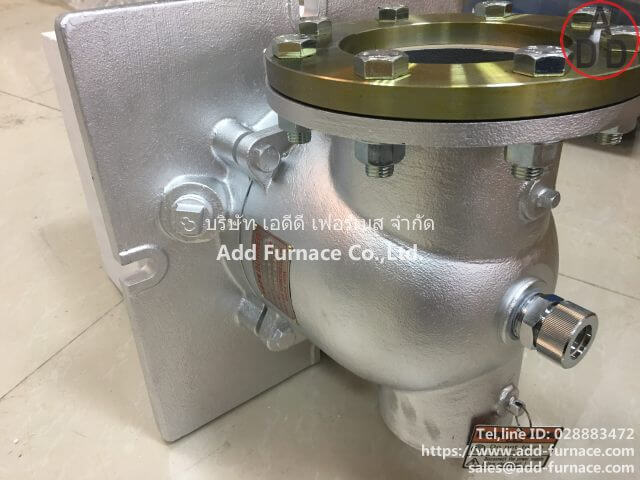

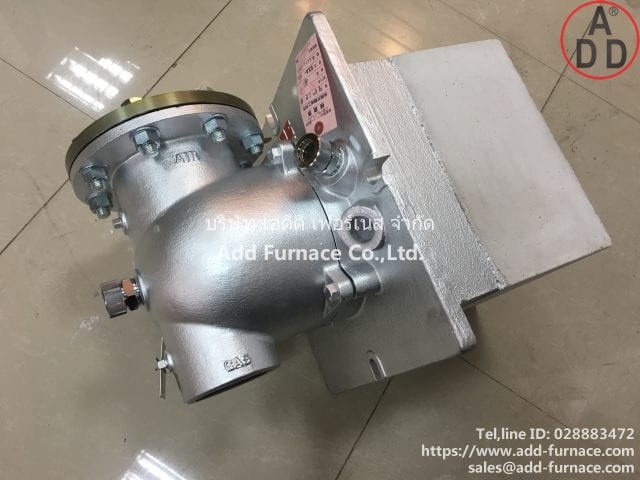

HopeBurner Type EXA-6A
  • (Gas)ニュールミナスガスバーナー 丸型タイル: HopeBurner Type EXA-6A
  • รุ่นType型式: EXA-6A
  • แคลอรี่Max capacity燃焼容量: 1060kW(912x1,000kcal/h)
  • แก๊สเข้าGas Inlet Pressure基準圧ガス: 2~10kPa(20~100mBar),อากาศAir Inlet Pressure基準圧エアー: 6kPa (60mBar)
  • ขนาดท่อแก๊สGas Inlet接続口径ガス: Gas RC 3", ท่ออากาศเข้าAir Inlet続口径エアー: Air 125A(JIS5K)
  • Circumstanes temperature : 1400'C
  • Applications: Nozzle-mixing type burner. Very stable combustion can be obtained even if with excessair. As high-speed combustion mixes fluids in the furnace, heating is uniform. Further, a high turndown tatio is so big that it is possible to regulate the control of temperature to the extent of low temperature.
  • ยี่ห้อBrand: HOPE
  • Made in Japan
  • HopeBurner Type EXA-6A (1)
  • Excess Air Gas Burner Square Tile
  • Excess Air Gas Burner Dimension and Flame Pattern
  • HopeBurner Type EXA-6A (2)
  • HopeBurner Type EXA-6A (3)
  • HopeBurner Type EXA-6A (4)
  • HopeBurner Type EXA-6A (5)
  • HopeBurner Type EXA-6A (6)
  • HopeBurner Type EXA-6A (7)
  • HopeBurner Type EXA-6A (8)
  • HopeBurner Type EXA-6A (9)
  • HopeBurner Type EXA-6A (10)
  • HopeBurner Type EXA-6A (11)
  • HopeBurner Type EXA-6A (12)
  • HopeBurner Type EXA-6A (13)
  • HopeBurner Type EXA-6A (14)
  • HopeBurner Type EXA-6A (15)
  • HopeBurner Type EXA-6A (16)
  • HopeBurner Type EXA-6A (17)
  • HopeBurner Type EXA-6A (18)
  • HopeBurner Type EXA-6A (19)
  • HopeBurner Type EXA-6A (20)
  • HopeBurner Type EXA-6A (21)
  • HopeBurner Type EXA-6A (22)
  • HopeBurner Type EXA-6A (23)
  • HopeBurner Type EXA-6A (24)
  • HopeBurner Type EXA-6A (25)
  • HopeBurner Type EXA-6A (26)
  • HopeBurner Type EXA-6A (27)
