V4055D 1043

V4055D 1043
  • Fluid Power Actuator
  • Type : V4055D 1043
  • Volts : 110/120V 50/60Hz
  • Opening Time : 13 sec.
  • Max Closing Time : 1 sec.
  • Amps Opening : 1.57
  • Amps Holding : 0.13
  • Gas Type G-LP
  • Max.Load of Damper Devices @ 2-11/16 IN.Radius -40F to +20F 5LBS +20F to +150F20 LBS
  • Ambient Range -40F to +150F AT 60Hz,-10F to +158F AT 50Hz
  • Stem Force 140 LBS @ +75F Operation Position Multipoise Valve Open Red; Valve Closed Yellow NEMA1;General Purpose Enclosure
  • Brand : Honeywell
  • Fluid Power Actuator Type V4055A Product Catalog

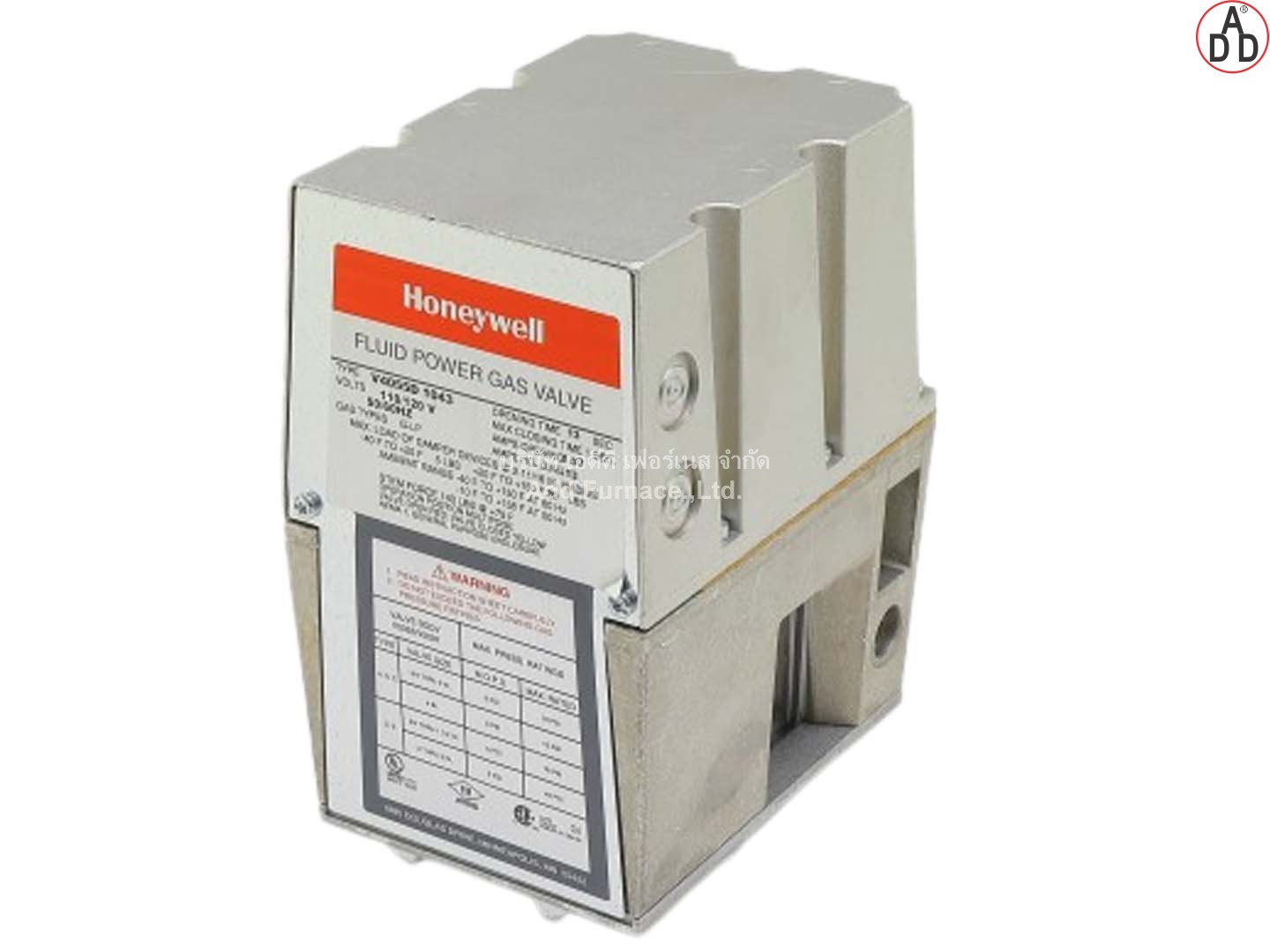

  • V4055D 1043 (1)

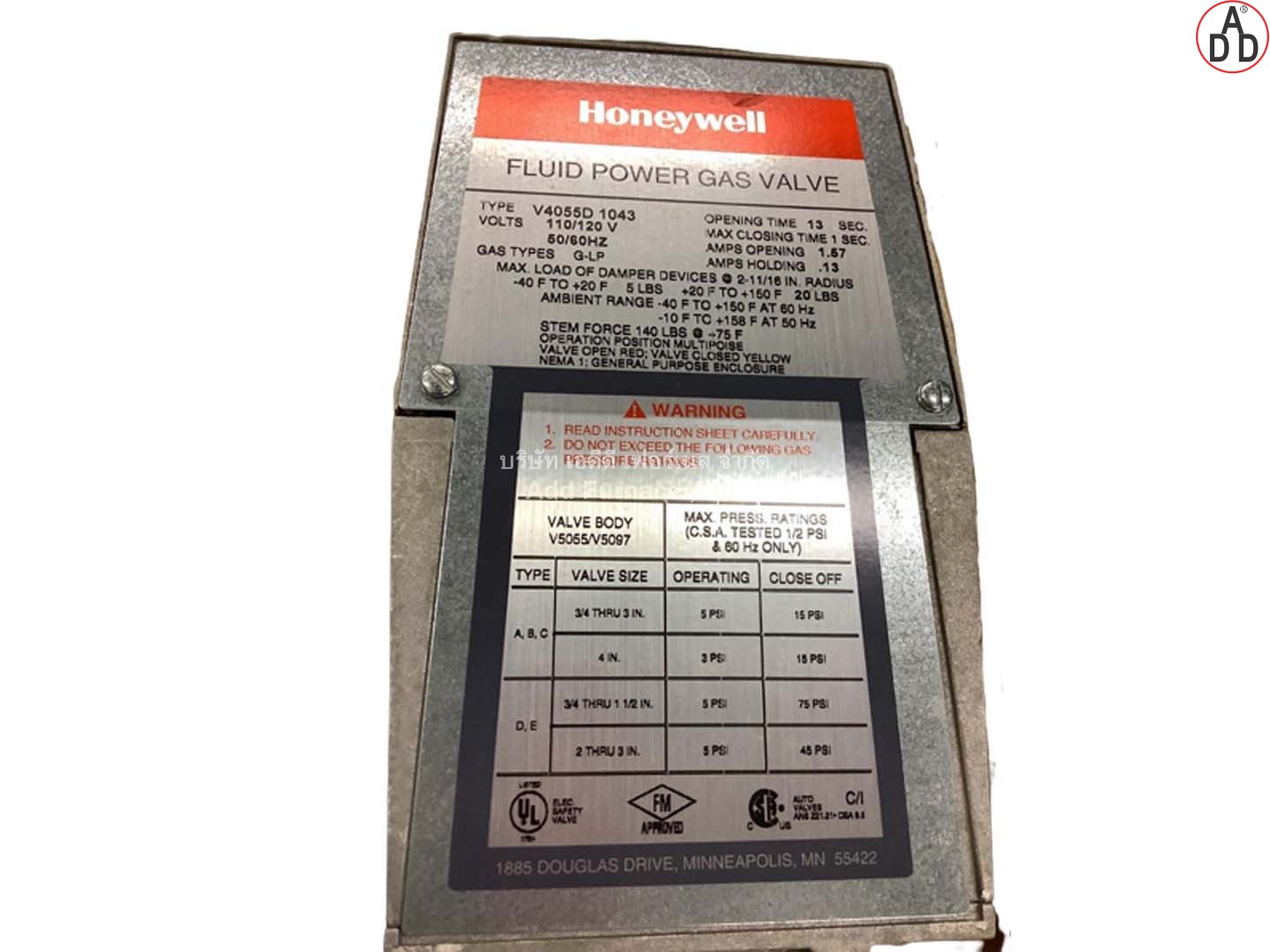

  • V4055D 1043 (2)

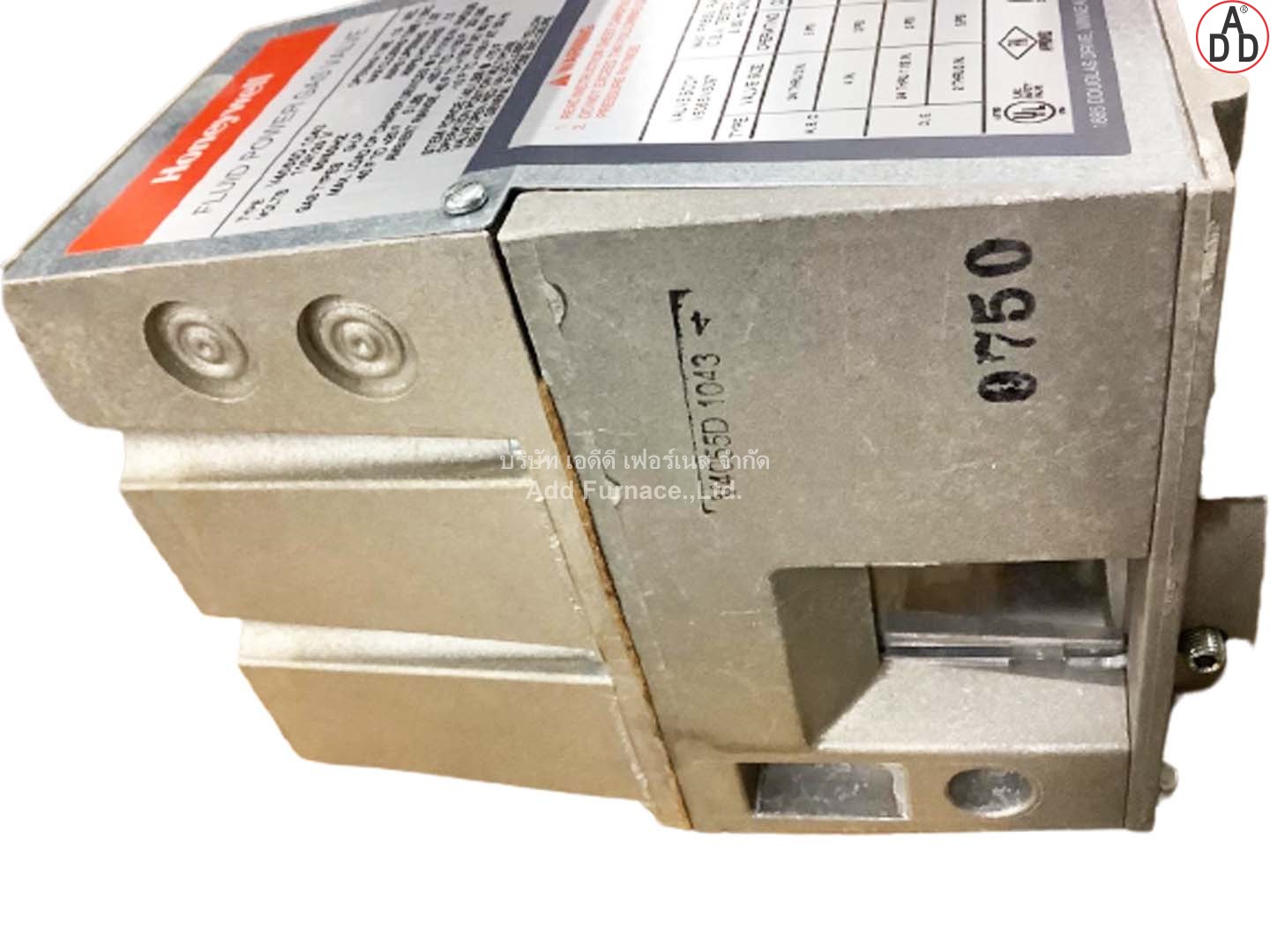

  • V4055D 1043 (3)

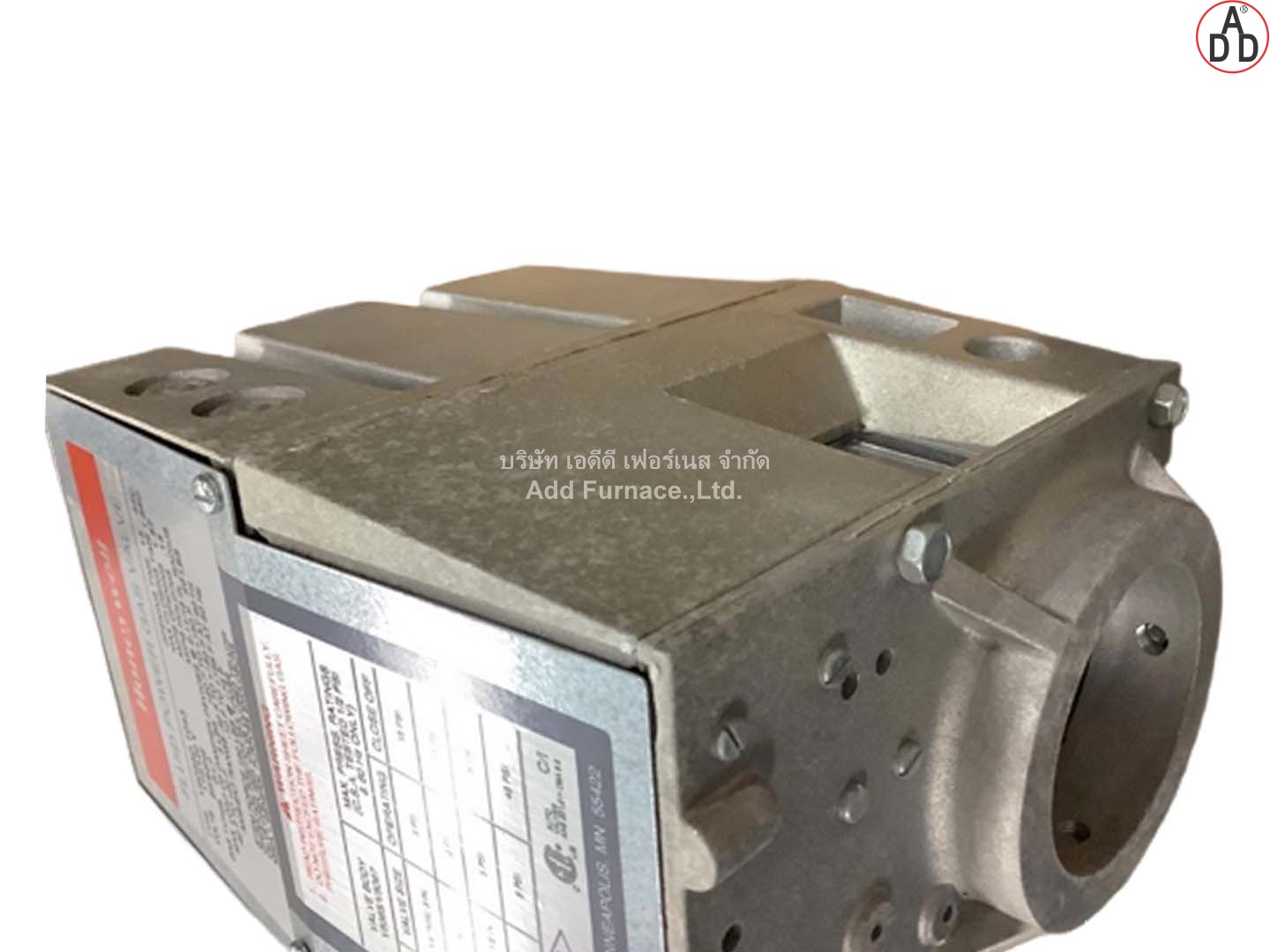

  • V4055D 1043 (4)
