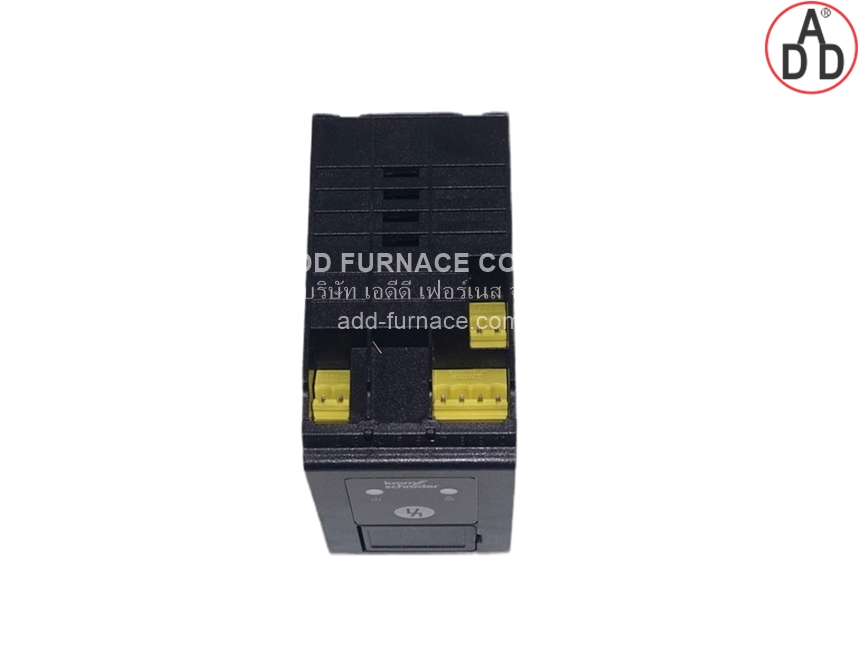

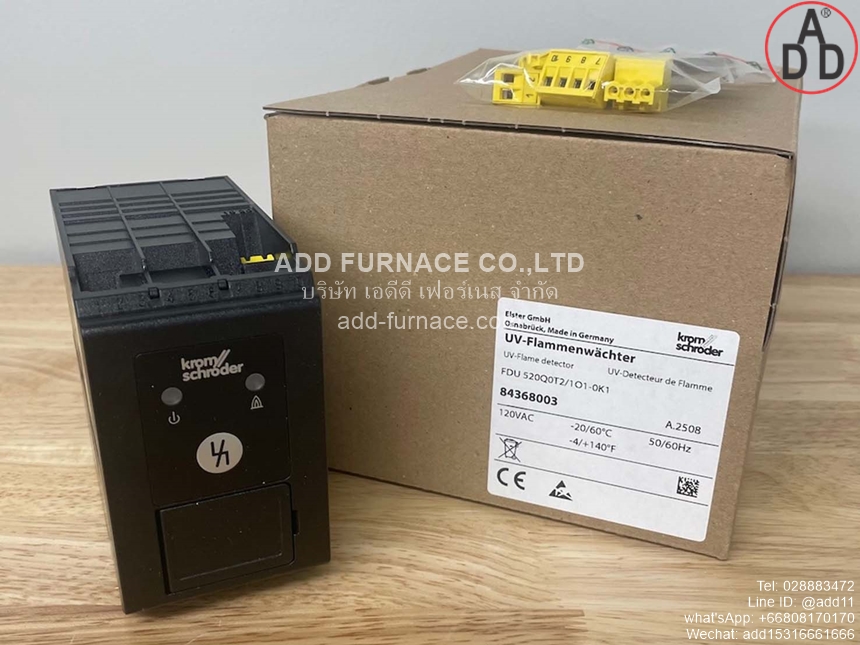

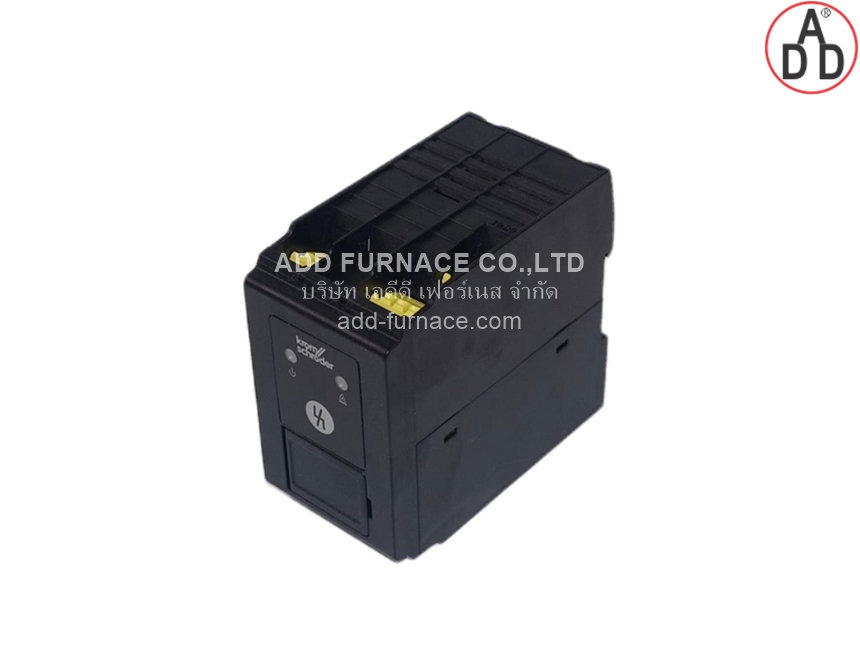

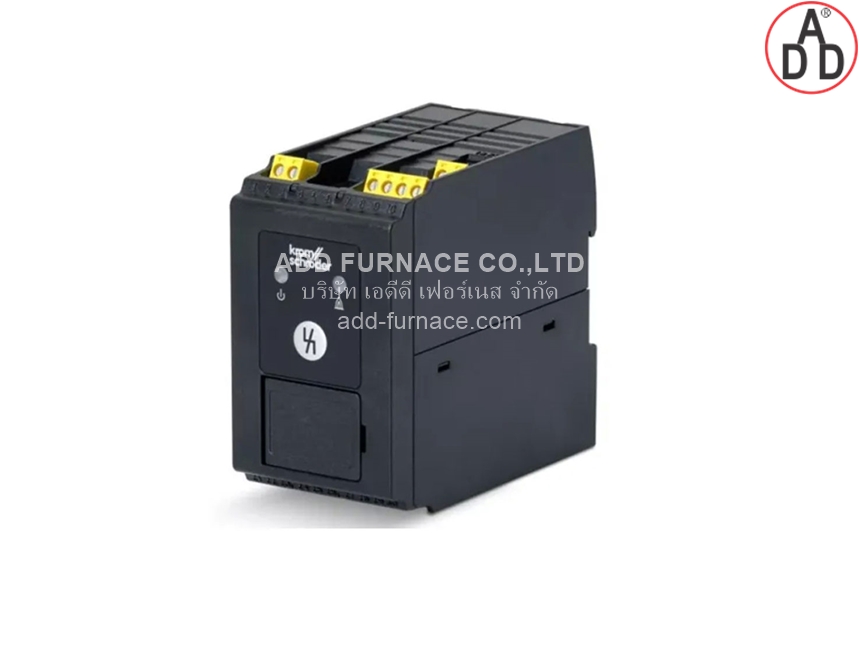

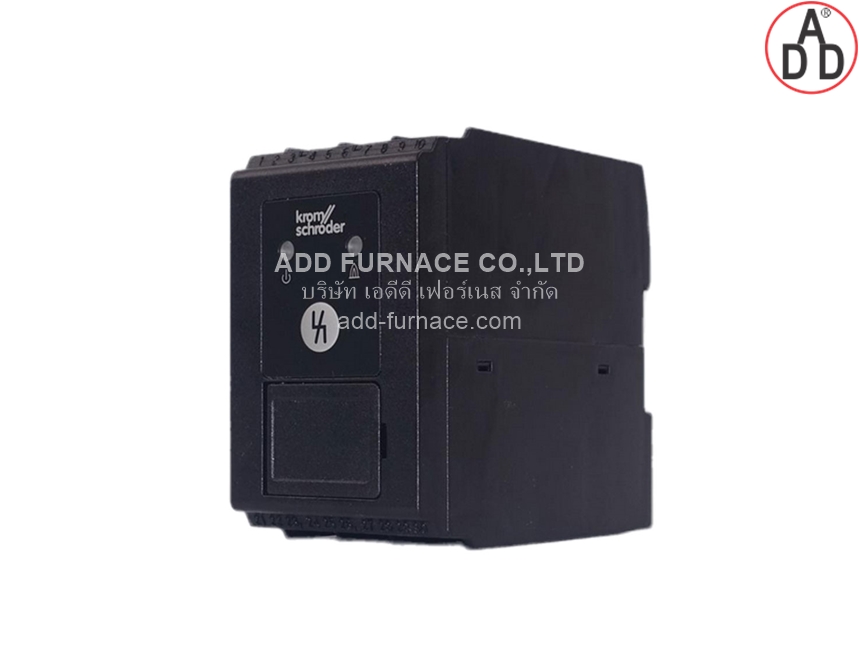

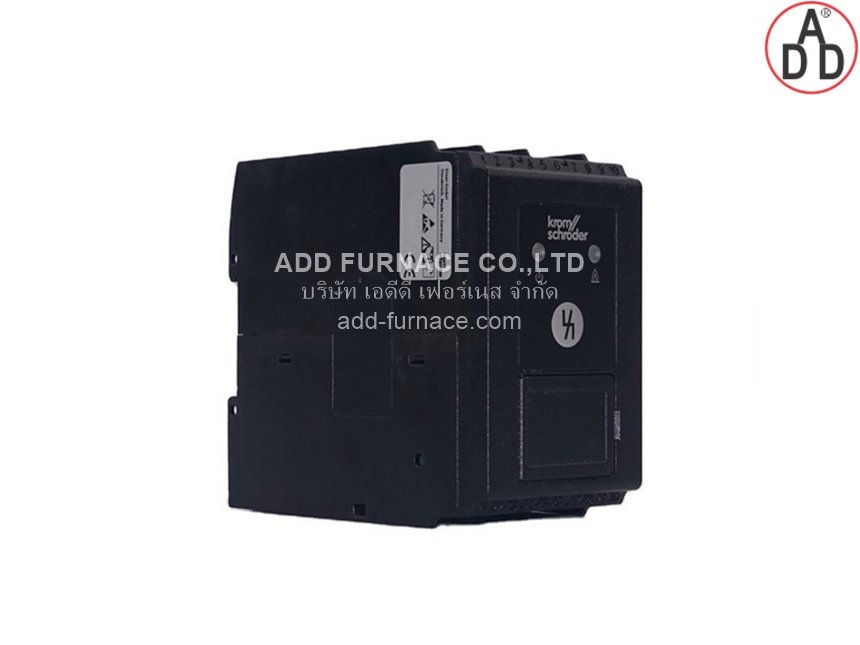

FDU 520Q0T2/1O1-0K1

• Flame Relay: FDU 520Q0T2/1O1-0K1
• Type:FDU 520Q0T2/1O1-0K1
• Replace with Kromschroder IFW-15T(Discontinued)
• Main Voltage:120V AC 50/60Hz
• Multi Input sensor:UVS Series Sensor
• -20 +60'C
• FDU: Flame Detector
• 520: Series 520 for continuous operation
• Q: Mains voltage:120 VAC, 50/60 Hz
• T2: Switch-off threshold:2 μA
• 1: Safety time during operation: 1s
• 01: Contacts: 1 NO contact,1 NC contact
• -0: No output
• K1: Connection plugs with screw terminals
• Brand:
• Made in Germany
• Similar products Discontinued product list Replacement model
• IFW 15-T(Flame Rod detection) <=>FDU 510W1T2/101-0K1(84368012)
• IFW 15-T(UVS Series UV detection) <=>FDU 510W2T5/101-0K1(84368013)
• IFW 15(84359030) <=>FDU 510Q1T2/101-0K1(84368015)
• IFW 15(84359030) <=>FDU 510Q25/101-0K1(84368016)
• IFW 15-NZ (84359032) <=> FDU 510Q1T2/102-0K1(84368112)
• 84359032,IFW 15-NZ <=> FDU 510Q22/102-0K1(84368113)
• IFW 50W/R <=> FDU 520W12/101-0K1(84368000)
• IFW 50W/R <=> FDU 520Q12/101-0K1(84368003)
• Honeywell BC1000B1018 <=> FDU 510W12/101-0K1(84368012)
• Honeywell BC1000B2019 <=> FDU 510W3T2/1O1-0K1(84368014)
• Honeywell BC1000B2019 <=> FDU 510W9T2/1O1-0K1(84368014)
• Honeywell BC1000B1000 <=> FDU 510Q12/101-0K1(84368015)
• Honeywell BC1000B2001 <=> FDU 510Q35/101-0K1(84368017)
• Honeywell BC1000A0220F <=> FDU 510W12/402-0K1(84368115)
• Honeywell BC1000A0220U <=> FDU 510W3T5/402-0K1(84368117)
• Honeywell BC1000A0110F <=> FDU 510Q1T2/402-0K1(84368118)
• Honeywell BC1000A0110U <=> FDU 510Q35/402-0K1(84368120)
• Honeywell R4343E1006(UV sensor)<=> FDU 510Q35/101-0K1(84368017)
• Honeywell R4343E1006(UV sensor)<=> FDU 510Q35/102-0K1(84368114)
• Honeywell R4343D1009(Flame Rod) <=> FDU 510Q12/101-0K1(84368015)
• Honeywell R4343D1009(Flame Rod) <=> FDU 510Q12/102-0K1(84368112)
• Honeywell R4343E1014(UV sensor) <=> FDU 510W3T2/1O1-0K1(84368014)
• Honeywell R4343E1014(UV sensor) <=> FDU 510W9T2/1O1-0K1(84368014)
• Honeywell R4343E1014(UV sensor) <=> FDU 510W3/102-0K1(84368111)
• Honeywell R4343D1017(Flame Rod) <=> FDU 510W1T2/102-0K1(84368109)
• Honeywell R4343D1017(Flame Rod) <=> FDU 510W1T2/101-0K1(84358012)
