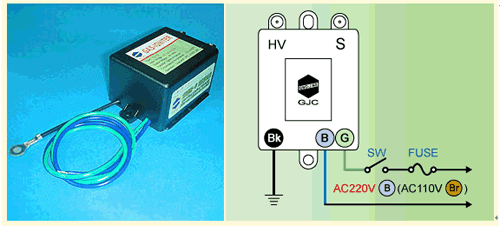

GAS IGNITER type:GJ-102C (GJ-101) IGNITER

IGNITER SIZE

Length:79mm

Width:50mm

Height:35mm

Weight:130 grams

WIRES DIRECTION

1. HV:High voltage output wire for igniting.(Bigger 5mm red wire)

2. Green:Power input wire. (controlled by power switch)

3. Blue:Power input wire (common line) [Brown:Power input wire. AC-110V(common line)]

4. Black:Earth wire

SPECIFICATION AND FEATURE

1. Input voltage:AC-220V~240V, 50/60Hz. [AC-110V~120V, 50~60HZ.]

2. HV of igniting output:16~18KV.

3. This is a manual, simple igniter for various kinds of Gas Burners. Please make sure to use

4. The blue wire should be the common line while some Igniters are paralleled used together

FITTING GUIDE

1. The high voltage wire for igniting must be surely connected with a high voltage Igniting

2. Both the high voltage wire and rod should keep clean and dry to prevent from poor

3. The earth wire of the Igniter must have good access direct to the ground

4. The heated temperature of high voltage igniting wire is not allowed more than 100 degree

5. The ambient temperature for fitting the Igniter should be less than 50 degree Celsius. The

6. The GJ-102 is available for the small fire Gas Burner with LPG or city gas. The Gas Burner
