Eclipse Burners 160AH | AH14.109252-01X31XXX

Eclipse Burners 160AH | AH14.109252-01X31XXX
  • AIR HEAT: Eclipse Burners 160AH,AH14.109252-01X31XXX
  • Type: AH14.109252-01X31XXX
  • Capacity Range: 1,600,000~2,000,000(Btu/hr), 469~586kW/h
  • Turndown: 40:1
  • Max. Temperature: 1500°F, 815°C
  • Fuels: Natural Gas, Propane
  • Applications: Dry-off and curing ovens,Incinerators,Indirect air heating,Textile Drying,Food Processing/baking,Ceramic Drying
  • AH14.109252-01X31XXX:
  • AH14: Air Heat Burner V.14
  • 109252: Model 109252 - AH 160: 1.6-2MM Btu/H(469-586kW)
  • 01: Firing Position, No.1: Right Hand Horizontal
  • X: Mounting - Less Mounting Flange
  • 31: Blower Motor Type: 31 -50 Hz Blower Assy Moro-MN502
  • X: InletFilterGrille - Less Blower Filter
  • X: Scanner Adapter Option - Less Scanner Adapter
  • X: Pipping Connection: Stardard Piping
  • Brand: Eclipse
  • Made in U.S.A
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (1)
  • Eclipse Air Heat Burners

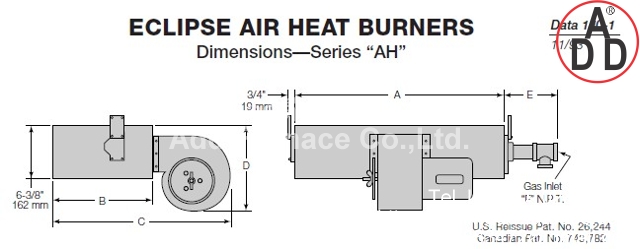

  • Eclipse Burners AH Model Dimension (1)

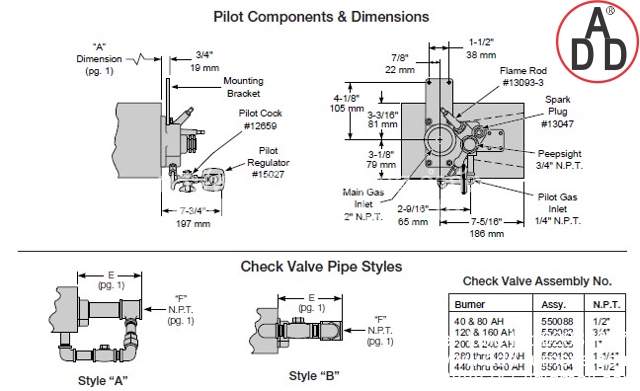

  • Eclipse Burners AH Model Pilot Components (1)
  • Eclipse 10002242-2
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (3)
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (4)
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (5)
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (7)

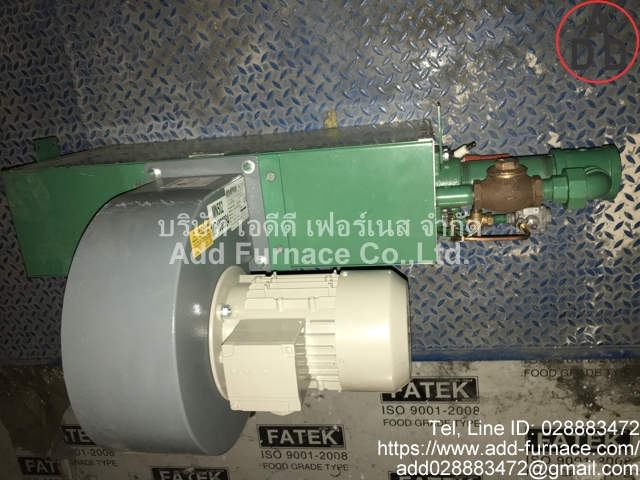

  • Eclipse Burners 160AH | AH14.109252-01X31XXX (8)
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (9)
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (10)
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (11)
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (12)
  • Eclipse Burners 160AH | AH14.109252-01X31XXX (14)
