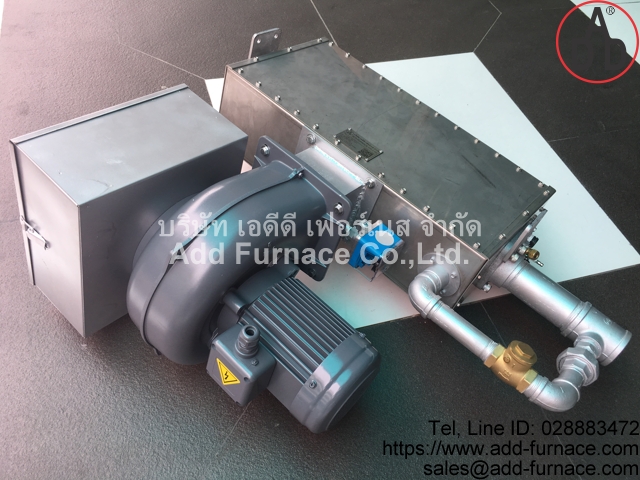

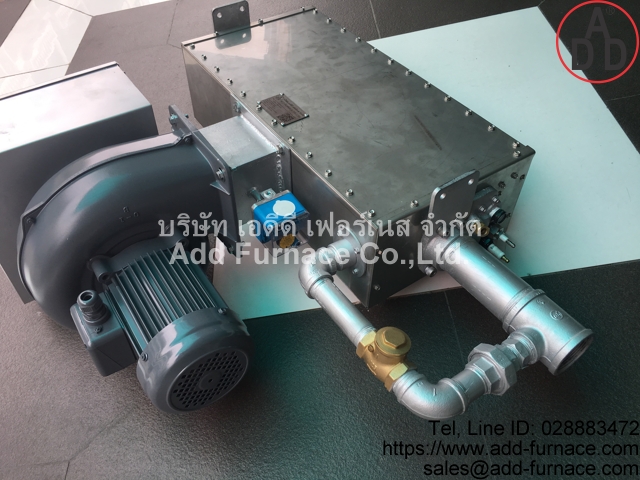

Yamataha 160 AH(DCM-B40)

Yamataha 160 AH(DCM-B40)
  • AirHeat Burners: Yamataha 160 AH, Yamataha DCM-40
  • Type:Yamataha 160 AH, Yamataha DCM-40
  • 466~586kW/h = 400,000Kcah/h = 1,600,000Btu/h
  • Max Temperature 400℃,750℉
  • L.P.G(Propane,Butane) Pressure Range:20~28mbar,200~280mmAq,2~2.8kPa,8~11"WC
  • LNG(Natural) Pressure Range:35~40mBar,350~400mmAq,3.5~4kPa,14~16"WC
  • Blower Fan: 0.75kW,3Phase, 380V, 2800rpm,1.8A,0.7kPa,7mBar,2.8"WC, 23m³/min(1380m³/h)
  • Brand: Yamataha
  • Applications主な用途:
  • Hot Air
  • Dry-off curing ovens
  • Indirect air heating
  • Textile Drying
  • Food,Processing/baking
  • Ceramic Drying
  • 塗装・鍍金工業……塗料の焼き付け乾燥
  • 前処理後の水切り乾燥
  • ■繊維産業……生地乾燥、染色後の乾燥
  • ■食品工業……麺類乾燥、農産品・穀類の乾燥、水産物乾燥、茶葉乾燥、スプレードライヤー
  • ■金属加工・化学工業……熱処理炉、接着剤乾燥、シート材の発泡処理
  • ■木材工業・革製品……木材乾燥、ウレタン塗装乾燥、皮の染色乾燥
  • ■窯業、鋳物……原料乾燥、成型後の予備乾燥、鋳物塗型の乾燥
  • ■その他……温風カーテン
  • Made in Thailand
  • Yamataha 160 AH(DCM-B40) (1)
  • Yamataha 160 AH(DCM-B40) (2)
  • Yamataha 160 AH(DCM-B40) (3)
  • Yamataha 160 AH(DCM-B40) (4)
  • Yamataha 160 AH(DCM-B40) (5)
  • Yamataha 160 AH(DCM-B40) (6)
  • Yamataha 160 AH(DCM-B40) (7)
  • Yamataha 160 AH(DCM-B40) (8)
  • Yamataha 160 AH(DCM-B40) (9)
  • Yamataha 160 AH(DCM-B40) (10)
  • Yamataha 160 AH(DCM-B40) (11)
  • Yamataha 160 AH(DCM-B40) (12)
  • Yamataha 160 AH(DCM-B40) (13)
  • Yamataha 160 AH(DCM-B40) (14)
  • Yamataha 160 AH(DCM-B40) (15)
  • Yamataha 160 AH(DCM-B40) (16)
  • Yamataha 160 AH(DCM-B40) (17)
  • Yamataha 160 AH(DCM-B40) (18)
  • Yamataha 160 AH(DCM-B40) (19)
